Renault Clio: Navigation computer: Removal - Refitting
NAVIGATION AID 1 LEVEL
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4101.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- If the "computer - navigation screen" is being replaced,
carry out the necessary operations using the
Diagnostic tool (see Fault finding - Replacement
of components) (86C, Navigation).
- Switch off the ignition.
WARNING
To prevent damaging the navigation system, wait
1 minute after switching off the + after ignition
feed.
WARNING
Do not press on the screen as this may damage
it.
- Take the SD card out of its housing.
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4102.jpg)

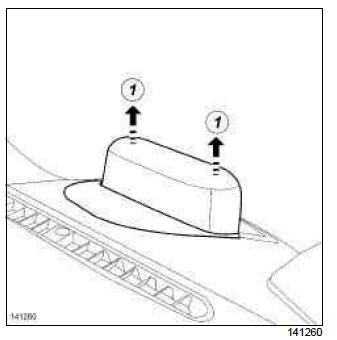

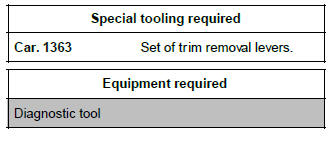

- Unclip the navigation screen upper trim (1) using the
tool (Car. 1363).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4103.jpg)
- Mark the routing of the wiring and the aerials.
WARNING
To ensure correct operation:
- do not pinch the aerial cables,
- do not bend the aerial cables,
- do not force the aerial cables when refitting.
- Mark the aerial position on the unit.

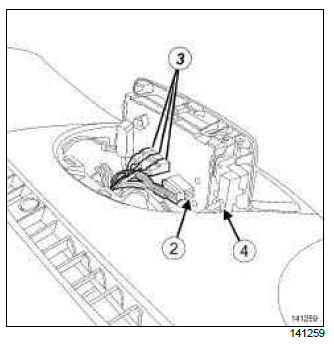

- Disconnect:
- the connector (2) of the navigation screen,
- the aerials (3) on the navigation screen,
- the connector (4) of the seat belt reminder warning
light.
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4104.jpg)

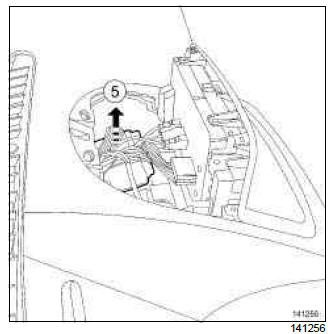

- Unclip the multimedia network interface unit from the navigation screen
support (5).
- Move aside the multimedia network interface unit.
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4105.jpg)

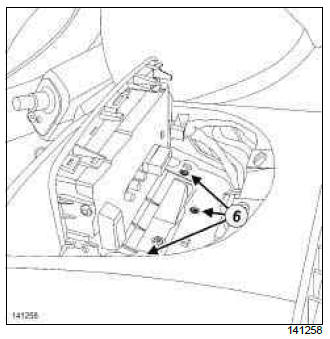

- Remove the bolts (6) from the " support - navigation
screen " assembly.
- Unclip the " support - navigation screen " assembly.
- Remove the " support - navigation screen " assembly.
![Renault Clio. Navigation computer: Removal - Refitting](images/books/2116/renault_clio_navigation_computer_removal_refitting_4106.jpg)
- Remove the navigation screen bolts (7).
- Unclip the navigation screen from the support.
- Remove the navigation screen.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
WARNING
Do not press on the screen as this may damage
it.
- Refit:
- the navigation screen on the support,
- the " support - navigation screen " assembly.
- Fit the multimedia network interface unit.
- Clip on the multimedia network interface unit.
WARNING
To ensure correct operation:
- do not pinch the aerial cables,
- do not bend the aerial cables,
- do not force the aerial cables when refitting.
- Connect:
- the connector of the navigation screen,
- the aerials on the navigation screen in the position
marked during removal,
- the connector of the seat belt reminder warning
light.
- Refit the wiring in the position marked during removal.
II - FINAL OPERATION
- Clip on the navigation screen upper trim.
- Insert the SD card in its housing.
- Switch on the ignition.
- If the "computer - navigation screen" is being replaced,
carry out the necessary operations using the
Diagnostic tool (see Fault finding - Replacement
of components) (86C, Navigation).
- Check the correct operation:
- of the seat belt warning light,
- of the navigation system, if the satellites can be accessed.
