Renault Clio: Navigation: List and location of components
NAVIGATION AID 1 LEVEL or NAVIGATION AID 1
I - LIST OF COMPONENTS
The "navigation" equipment consists of:
- a navigation aerial (see 86A, Radio, Radio aerial:
Removal - Refitting, 86A-11)
NAVIGATION AID 1
- a radionavigation system (see 83C, On-board
telematics system, Radio navigation: Removal -
Refitting, 83C-3)
- a navigation screen (see 86A, Radio, Display: Removal
- Refitting, 86A-18)
NAVIGATION AID 1 LEVEL
- a "computer - navigation screen" assembly (see 83C,
On-board telematics system, Navigation computer:
Removal - Refitting, 83C-4)
- a multimedia network interface unit (see 83C, On-board
telematics system, Multimedia network interface
unit: Removal - Refitting, 83C-7)
- a remote control and its support on the centre
console
II - LOCATION OF COMPONENTS

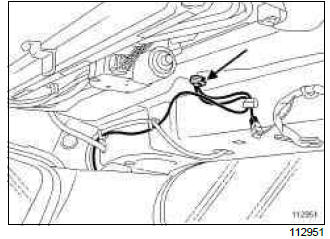

Navigation aerial
![Renault Clio. Navigation: List and location of components](images/books/2116/renault_clio_navigation_list_and_location_of_components_4094.jpg)
NAVIGATION AID 1

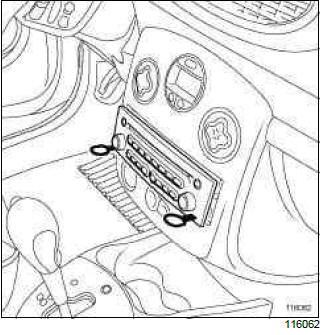

Radio navigation system
![Renault Clio. Navigation: List and location of components](images/books/2116/renault_clio_navigation_list_and_location_of_components_4095.jpg)
Navigation screen
![Renault Clio. Navigation: List and location of components](images/books/2116/renault_clio_navigation_list_and_location_of_components_4096.jpg)
NAVIGATION AID 1 LEVEL

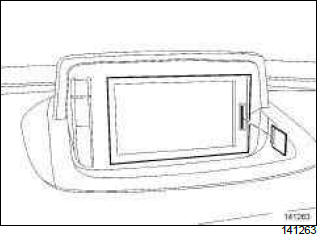

"Computer - navigation screen" assembly
![Renault Clio. Navigation: List and location of components](images/books/2116/renault_clio_navigation_list_and_location_of_components_4097.jpg)

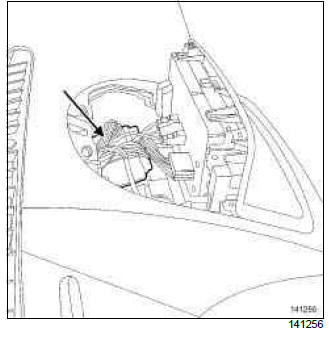

Multimedia network interface unit
![Renault Clio. Navigation: List and location of components](images/books/2116/renault_clio_navigation_list_and_location_of_components_4098.jpg)
Radio navigation: Removal - Refitting
NAVIGATION AID 1
![Renault Clio. Radio navigation: Removal - Refitting](images/books/2116/renault_clio_navigation_list_and_location_of_components_4099.jpg)
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Radio navigation: Removal - Refitting](images/books/2116/renault_clio_navigation_list_and_location_of_components_4100.jpg)

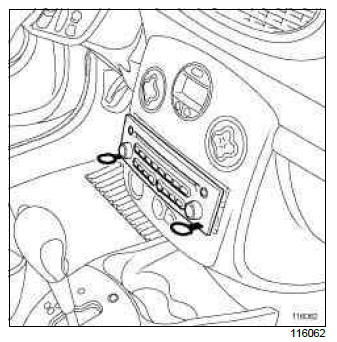

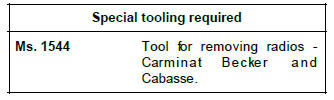

- Remove the radio navigation system using tool (Ms.1544).
- Disconnect the radio navigation system connectors.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Connect the radio navigation system connectors.
- Refit the radio navigation system.
II - FINAL OPERATION
- Carry out the necessary operations (see MR 394
Fault finding, 83C, Navigation, Replacement of
components).
