Renault Clio: On-board computer: general information

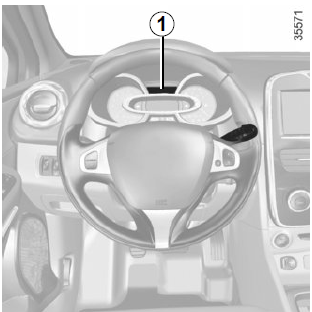

On-board computer 1

Renault Clio. On-board computer 1


Depending on the vehicle, this includes the following functions:

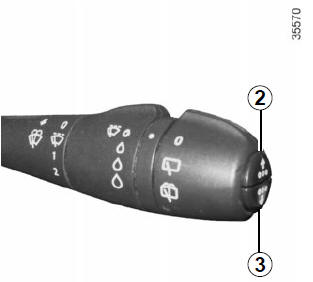

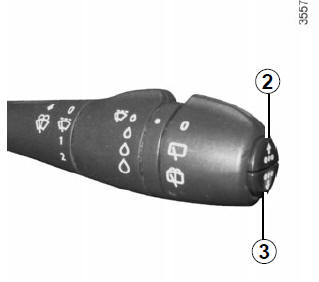

Display selection keys 2 and 3

Renault Clio. Display selection keys 2 and 3


Scroll through the following information upwards (key 2) or downwards (key 3) by pressing briefly and successively (the display depends on the vehicle equipment and country).

  1. total mileage and trip mileage recorder;
  2. fuel used;
  3. average fuel consumption;
  4. current fuel consumption;
  5. estimated range;
  6. distance travelled;
  7. average speed;
  8. distance before service;
  1. Reset the tyre pressure
  2. Cruise control and speed limiter programmed speed
  3. Clock and temperature
  4. Trip log, operating faults and information message readout

Resetting the trip mileage

Renault Clio. Resetting the trip mileage


With “trip mileage recorder” selected on the display, press button 2 or 3 until the mileage recorder resets to zero.

Resetting the journey parameters (reset button)

With one of the trip parameters selected as the display, press and hold button 2 or 3 until the display resets

Interpreting some of the values displayed after resetting

The values showing average fuel consumption, range and average speed will become more stable and reliable the further you travel after pressing the reset button.

For the first few miles after pressing the reset key you will notice that the range increases as you travel. This range takes into account the average fuel consumption since the last time the reset button was pressed. Therefore, the average fuel consumption may decrease when:

Automatic resetting of the journey parameters

Resetting occurs automatically when the maximum value of any of the parameters is exceeded.
