Renault Clio: Parking brake cables: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Remove the centre console (see Centre console:
Removal - Refitting) (MR 393, 57A, Interior equipment).
DRUM BRAKE
- Remove:
- the wheels (see 35A, Wheels and tyres, Wheel:
Removal - Refitting, 35A-1),
- the drums (see 33A, Rear axle components,
Rear brake drum: Removal - Refitting, 33A-19).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Parking brake cables: Removal - Refitting](images/books/2116/renault_clio_parking_brake_cables_removal_refitting_3440.jpg)
- Loosen the adjusting nut (1) for the parking brake
cables enough to be able to remove the parking
brake cables.
- Remove the parking brake cables (2) at the control
lever.
- Unclip the sheath (3) from its stop on the bodywork
using a pair of pliers.
DRUM BRAKE
![Renault Clio. Parking brake cables: Removal - Refitting](images/books/2116/renault_clio_parking_brake_cables_removal_refitting_3441.jpg)

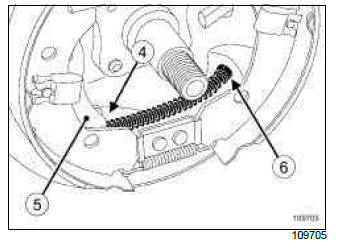

- Remove the parking brake cable (4) from the lever
(5) using pliers and a screwdriver.
- Unclip the parking brake cable sheath (6) from the
drum back-plate.
DISC BRAKE
![Renault Clio. Parking brake cables: Removal - Refitting](images/books/2116/renault_clio_parking_brake_cables_removal_refitting_3442.jpg)

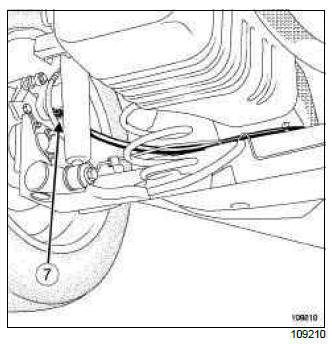

- Remove the parking brake cables (7) at the brake
callipers.
![Renault Clio. Parking brake cables: Removal - Refitting](images/books/2116/renault_clio_parking_brake_cables_removal_refitting_3443.jpg)

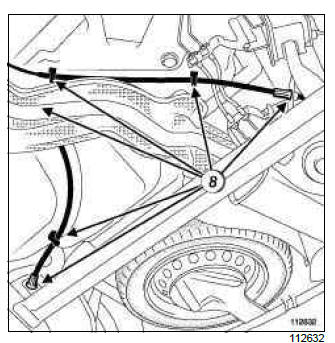

- Unclip the parking brake cables from their guides (8).
- Remove the parking brake cables:
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit the parking brake cables.
- Hook the parking brake cables onto their guides.
DRUM BRAKE
![Renault Clio. Parking brake cables: Removal - Refitting](images/books/2116/renault_clio_parking_brake_cables_removal_refitting_3444.jpg)
- Reattach the parking brake cable sheath onto the
drum back-plate.
- Refit the parking brake cable back into the lever
housing using a pair of pliers and a screwdriver.

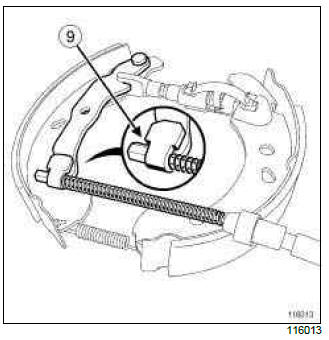

- Check that the cables (9) are correctly positioned on
the levers.
DISC BRAKE
- Refit the parking brake cables at the brake callipers.
- Reattach the sheath stop to the bodywork (3).
- Refit the parking brake cables at the control lever.
- Adjust the parking brake cables (see 37A, Mechanical
component controls, Parking brake lever:
Adjustment, 37A-90).
II - FINAL OPERATION.
DRUM BRAKE
- Refit:
- the drums (see 33A, Rear axle components,
Rear brake drum: Removal - Refitting, 33A-19),
- the wheels (see 35A, Wheels and tyres, Wheel:
Removal - Refitting, 35A-1)
- Refit the centre console (see Centre console: Removal
- Refitting) (MR 393, 57A, Interior equipment).
