Renault Clio: Rear side door lock: Removal - Refitting

Renault Clio III (2005-2013) Service Manual / Mechanisms And Accessories / Side Opening Element Mechanisms / Rear side door lock: Removal - Refitting

B85 or K85

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).

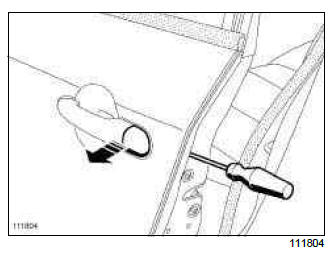

• Unclip the access blanking cover at the locking bolt of the dummy lock.

• Loosen the locking bolt completely without removing it.
• Remove the dummy lock.

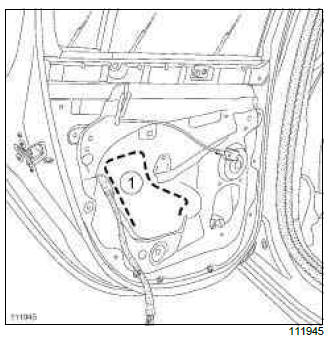

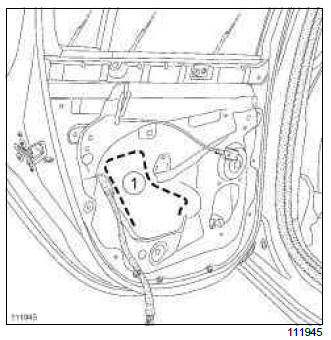

• Open the access flap (1) for the lock assembly following the marking on the sealing film (see Door sealing film: Removal - Refitting) (MR 393, 65A, Door sealing).

Note: Removal of the rear door exterior handle is the same as removing the front door exterior handle

• Remove the exterior rear door handle (see 51A, Side opening element mechanisms, Exterior door handle: Removal - Refitting, 51A-5).
• Drill the module's rivet on the door panel.

WARNING

Each time a panel is stripped in the workshop (e.g. when drilling), degrease and wipe the area and then use a fine paintbrush to apply the following:

• a pre-treatment primer,
• a two-part primer,
• paint in the vehicle body colour.

• Unclip the exterior handle module.

II - OPERATION FOR REMOVAL OF PART CONCERNED

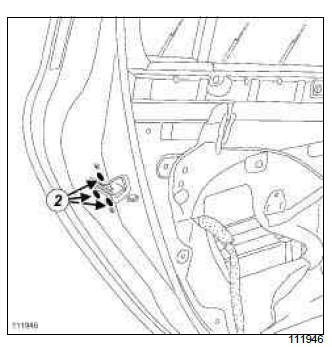

• Remove the bolts (2).

• Gently lift the lock to extract the retaining hook. (3)
• Remove the " exterior handle module - lock " assembly from the door box section.
• Disconnect the connectors (depending on equipment level).
• Unclip the exterior handle lock module cable.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Clip the lock cable to the exterior handle module.
• Fit the " exterior handle module - lock " assembly into the door box section.

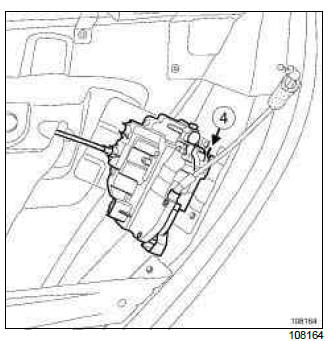

• Position the lock on the door box section retaining hook (4).
• Connect the connectors (depending on equipment level).

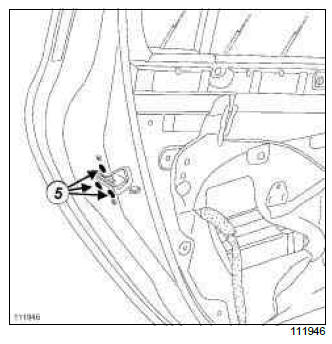

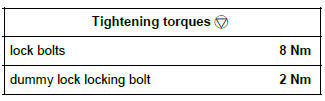

• Torque tighten the lock bolts (8 Nm) (5).

II - FINAL OPERATION.

• Clip the module on the door panel.
• Fit the dummy lock.
• Torque tighten the dummy lock locking bolt (2 Nm).
• Fit the access blanking cover to the locking bolt of the dummy lock.
• Rivet the exterior handle module (rivet part no.: 77 03 072 051).
• Refit the door exterior handle (see 51A, Side opening element mechanisms, Exterior door handle: Removal - Refitting, 51A-5).
• Carry out a function test.
• Close the access flap (see Door sealing film: Removal - Refitting) (MR 393, 65A, Door sealing).
• Refit the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).

Rear side door manual window winder mechanism: Removal - Refitting

B85 or K85

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).

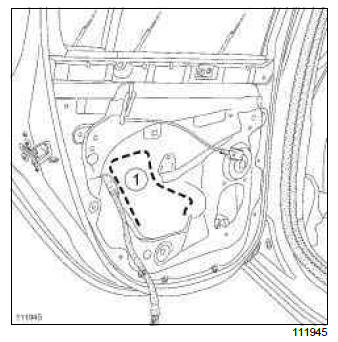

• Open the flap (1) to gain access to the window lift mechanism as indicated by the marking on the sealing film.
• Lower the sliding window to allow access to the window clip.
• Remove the window clip.
• Secure the window in the raised position using masking tape.

II - OPERATION FOR REMOVAL OF PART CONCERNED

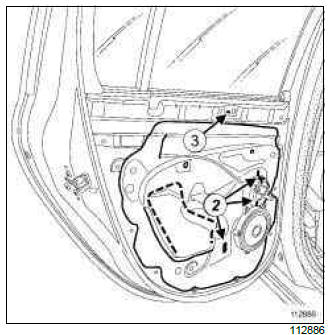

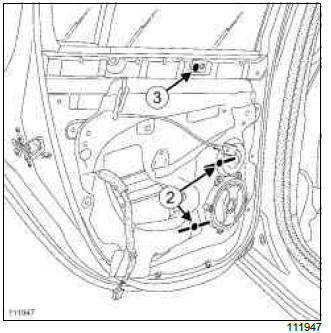

• Make cuts in the seal to access the window winder mechanism bolts (2).

• Remove the bolts (2) and (3).

• Remove the window lift mechanism.

REFITTING

I - OPERATION FOR REMOVAL OF PART CONCERNED

• Refit the window lift mechanism in the door box section.

• Position the sliding window.

• Refit the sliding window clip.

Note: When refitting the window lift mechanism, follow the tightening order.

The tightening order ensures the correct alignment of the window lift mechanism and that the window is correctly positioned with the clip.

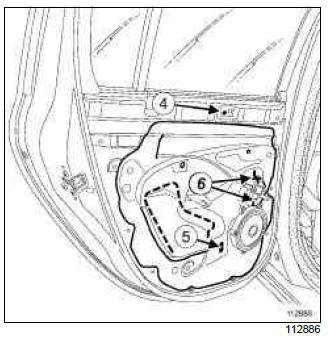

• Torque tighten the window winder mechanism bolts (6.5 Nm) following the tightening order: bolt (4), bolt (5) and bolts (6).
• Carry out a function test.

II - FINAL OPERATION.

• Close the access flap and the cuts in the sealing film (see Door sealing film: Removal - Refitting) (MR 393, 65A, Door sealing).
• Refit the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).

Rear side door electric window mechanism: Removal - Refitting

B85 or K85

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Remove the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).

• Open the access flap (1) of the window winder mechanism following the marking on the sealing film (see Door sealing film: Removal - Refitting) (MR 393, 65A, Door sealing).
• Lower the window to allow access to the window mounting clip.
• Unfasten the clip
• Secure the window in the raised position using masking tape.

II - OPERATION FOR REMOVAL OF PART CONCERNED

• Make cuts in the sealing film to access the window winder mechanism mounting bolts (2).
• Remove the bolts (2) and (3).
• Disconnect the window winder mechanism supply connector.
• Remove the window lift mechanism.

REFITTING

I - OPERATION FOR REMOVAL OF PART CONCERNED

• Fit the window winder mechanism in the door box section.
• Connect the window winder mechanism supply connector.
• Reposition the door window.

Note: When refitting the window winder mechanism, tighten the bolts in the order shown.

The tightening order ensures the correct alignment of the window lift mechanism and that the window is correctly positioned with the clip.

• Torque tighten the window winder mechanism mounting bolts (6.5 Nm) following the tightening order: bolt (4), bolt (5) and bolt (6).
• Carry out a function test.

II - FINAL OPERATION

• Close the access flap and the cuts in the sealing film (see Door sealing film: Removal - Refitting) (MR 393, 65A, Door sealing).
• Refit the door trim (see Rear side door trim: Removal - Refitting) (MR 393, 72A, Side opening element trim).
