Renault Clio: Rear wing light: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Electrical Equipment / Rear Lighting / Rear wing light: Removal - Refitting
B85 or C85 or S85
REMOVAL
OPERATION FOR REMOVAL OF PART CONCERNED
- Open the luggage compartment.

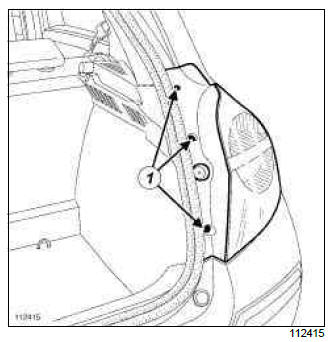

- Remove the bolts from the rear wing light (1).
- Remove the rear wing light.
- Disconnect the connector from the rear light on the wing.
- Remove the rear light.
- If replacing the rear light, remove the bulbs (see 81A, Rear lighting, Rear light bulb: Removal - Refitting, 81A-7).
REFITTING
REFITTING OPERATION FOR PART CONCERNED
- If replacing the rear light, refit the bulbs (see 81A, Rear lighting, Rear light bulb: Removal - Refitting, 81A-7).
- Connect the connector for the rear light on the wing.

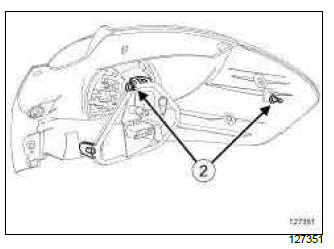

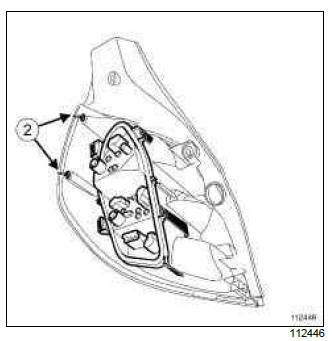

- Position the rear light on the wing using the centring devices (2).
- Refit the bolts for the rear light on the wing.
- Close the luggage compartment.
K85
REMOVAL
OPERATION FOR REMOVAL OF PART CONCERNED
- Open the luggage compartment.

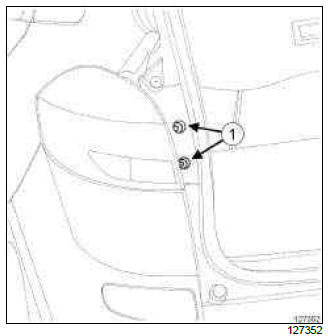

- Remove the bolts from the rear wing light (1).
- Remove the rear wing light.
- Disconnect the connector from the rear light on the wing.
- Remove the rear light.
- If replacing the rear light, remove the bulbs (see 81A, Rear lighting, Rear light bulb: Removal - Refitting, 81A-7).
REFITTING
REFITTING OPERATION FOR PART CONCERNED
- If replacing the rear light, refit the bulbs (see 81A, Rear lighting, Rear light bulb: Removal - Refitting, 81A-7).
- Connect the connector for the rear light on the wing.
- Position the rear light on the wing using the centring devices (2).
- Refit the bolts for the rear light on the wing.
- Close the luggage compartment.
