Renault Clio: Scuttle panel grille: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove the wiper arms (see Windscreen wiper
arm: Removal - Refitting) (MR 392, Mechanical
systems, 85A, Washing - Wiping).

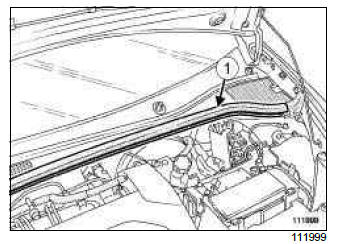

![Renault Clio. Scuttle panel grille: Removal - Refitting](images/books/2116/renault_clio_scuttle_panel_grille_removal_refitting_5567.jpg)
II - OPERATION FOR REMOVAL OF PART
CONCERNED

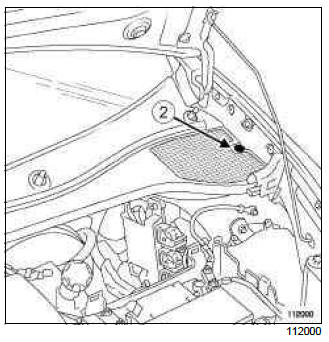

![Renault Clio. Scuttle panel grille: Removal - Refitting](images/books/2116/renault_clio_scuttle_panel_grille_removal_refitting_5568.jpg)

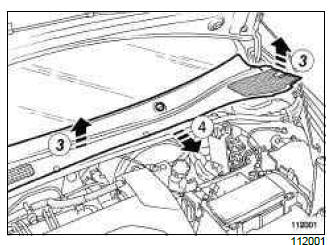

![Renault Clio. Scuttle panel grille: Removal - Refitting](images/books/2116/renault_clio_scuttle_panel_grille_removal_refitting_5569.jpg)
- Remove the scuttle panel grille (3) and (4).
REFITTING
I - REFITTING PREPARATION OPERATION
Note:
Check that the windscreen and the scuttle panel
grille are clean before refitting.
II - REFITTING OPERATION FOR PART
CONCERNED

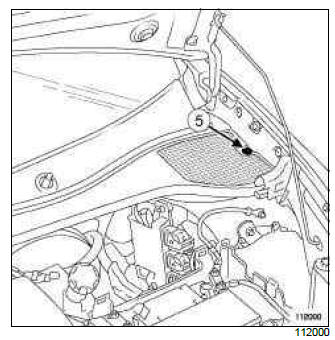

![Renault Clio. Scuttle panel grille: Removal - Refitting](images/books/2116/renault_clio_scuttle_panel_grille_removal_refitting_5570.jpg)
- Refit:
- the scuttle panel grille,
- the clips (5).
III - FINAL OPERATION.

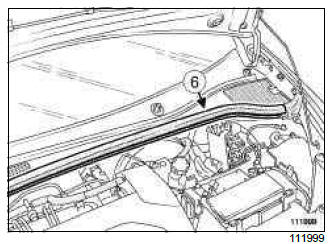

![Renault Clio. Scuttle panel grille: Removal - Refitting](images/books/2116/renault_clio_scuttle_panel_grille_removal_refitting_5571.jpg)
- Refit:
- the seal (6),
- the wiper arms (see Windscreen wiper arm: Removal
- Refitting) (MR 392, Mechanical systems,
85A, Washing - Wiping).
