Renault Clio: Sunroof mobile panel: Removal - Refitting
PANORAMIC SUNROOF
![Renault Clio. Sunroof mobile panel: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5403.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Sunroof mobile panel: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5404.jpg)
- Remove the rear bolts (1) from the mobile panel.
![Renault Clio. Sunroof mobile panel: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5405.jpg)

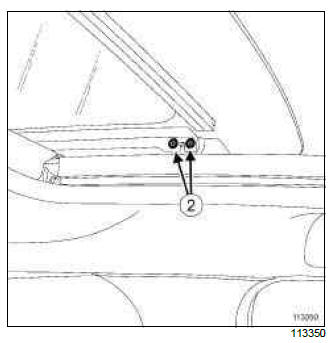

- Remove:
- the mobile panel front bolts (2),
- the mobile panel (this operation requires two people).
REFITTING
I - REFITTING PREPARATION OPERATION
Note:
When removing and refitting the mobile panel,
apply some HIGH-RESISTANCE THREADLOCK
(see Vehicle: Parts and consumables for the
repair) (04B, Consumables - Products) to the
bolts.
When replacing a mobile panel, replace the bolts
with the bolts supplied with the mobile panel.
![Renault Clio. Sunroof mobile panel: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5406.jpg)

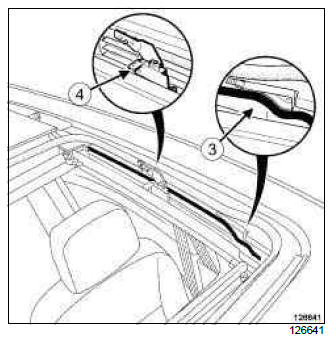

- Using a LINT-FREE CLOTH soaked in HEPTANE
(see Vehicle: Parts and consumables for the repair)
(04B, Consumables - Products), clean:
- the upper guide runner (3),
- the operating mechanism (4).
- Wipe areas (3) and (4) with a clean, dry LINT-FREE
CLOTH.
- Using a fine brush, lightly grease internal areas (3)
and (4) only with OPENING ELEMENT GREASE
(see Vehicle: Parts and consumables for the repair)
(04B, Consumables - Products).
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit the mobile panel (this operation requires two
people).

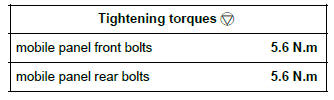

- Tighten to torque:
- the mobile panel front bolts (5.6 N.m),
- the mobile panel rear bolts (5.6 N.m).
- Initialise the sunroof motor (see Electric sunroof:
Initialisation) (87D, Electric windows - Sunroof).
Sunroof deflector: Removal - Refitting
PANORAMIC SUNROOF
![Renault Clio. Sunroof deflector: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5407.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Open the sunroof mobile panel.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Sunroof deflector: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5408.jpg)

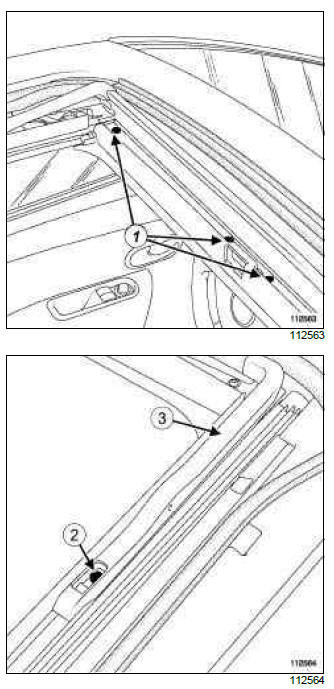

- Remove:
- bolts (1) and (2) whilst maintaining the deflector at (3),
- the sunroof deflector.
REFITTING
I - REFITTING PREPARATIONS OPERATION
Note:
When removing and refitting the sunroof deflector,
apply some high resistance threadlock to the
bolts.
When replacing the sunroof deflector, replace the
bolts with those supplied with the mobile panel.
II - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Sunroof deflector: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5409.jpg)

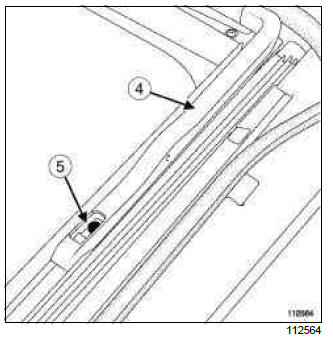

- Position the deflector return spring.
- Keep applying pressure to the deflector at (4).

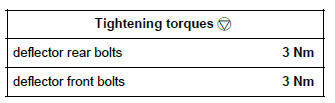

- Torque tighten the deflector rear bolts (3 Nm), (5).
![Renault Clio. Sunroof deflector: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5410.jpg)

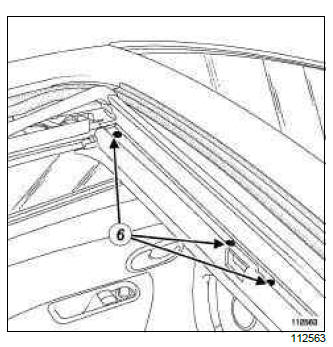

- Torque tighten the deflector front bolts (3 Nm), (6).
![Renault Clio. Sunroof deflector: Removal - Refitting](images/books/2116/renault_clio_sunroof_mobile_panel_removal_refitting_5411.jpg)

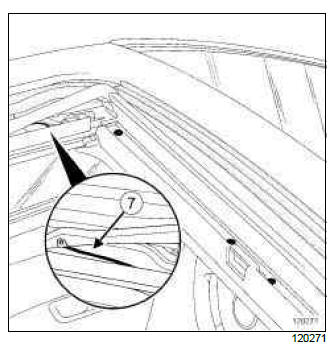

- Clean the areas (7) with a lint-free cloth soaked with
heptane.
- Wipe the areas (7) with a clean dry, lint-free cloth.
- Lightly lubricate the internal areas (7) only, using a
fine brush with grease for opening element mechanisms
(part no.: 77 11 419 865).
III - FINAL OPERATION.
- Initialise the sunroof motor (see Electric sunroof:
Initialisation) (MR 394, 87D, Electric windows -
Sunroof).
