Renault Clio: Throttle valve: Cleaning
D4F or F4R or K4J or K4M or M4R

IMPORTANT
Wear leaktight gloves (Nitrile type) for this operation.
IMPORTANT
Always wear protective gear (gloves, goggles and
breathing masks).
Note:
Be sure to work in a clean environment so as not to
allow any contamination of the throttle valve.
CLEANING
I - CLEANING PREPARATION OPERATION
- Remove the throttle valve (see 12A, Fuel mixture,
Throttle valve: Removal - Refitting, 12A-33).
II - CLEANING THE PART CONCERNED
Note:
The CARBURETTOR CLEANING product damages
the seals.
- Remove the seal(s) of the throttle valve.

- Hold the throttle valve flap open manually.
Note:
Do not spray any cleaning product onto the outside
of the cylinder, inside the spring housing or
onto the connector.

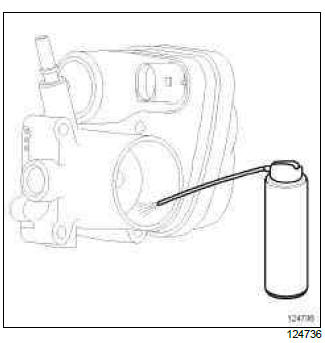

- Spray CARBURETTOR CLEANER (see Vehicle:
Parts and consumables for the repair) (04B, Consumables
- Products) into the air vent until all traces
of clogging have disappeared.

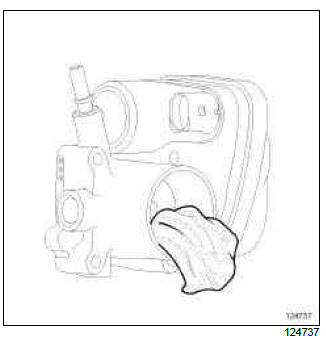

- Remove the residues of CARBURETTOR CLEANER
and the residual dirt using a LINT-FREE CLOTH
(see Vehicle: Parts and consumables for the repair)
(04B, Consumables - Products).

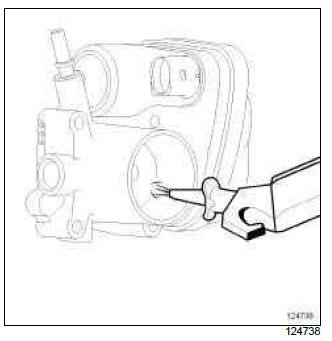

- Use a compressed air nozzle to blast the throttle
valve edges and the air vent.
- parts always to be replaced: Throttle valve seal.
Note:
If the throttle valve is dropped or receives any
other impact, it will need to be replaced.
III - FINAL OPERATION
- Refit the throttle valve (see 12A, Fuel mixture,
Throttle valve: Removal - Refitting, 12A-33)
