Renault Clio: Battery

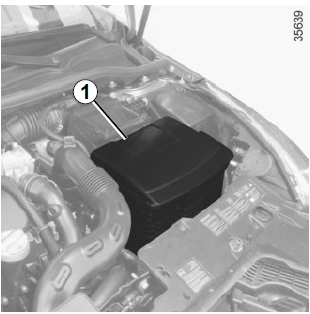

This is located under cover 1 and does not need to be serviced.
| Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor. Ensure that naked flames, red hot objects and sparks do not come into contact with the battery as there is a risk of explosion. |
Replacing the battery
As this operation is complex, we advise you to contact an approved Dealer.
| Before performing any action in the engine compartment, the ignition must be switched off by pressing the engine stop button (please see the information on “Starting, stopping the engine” in Section 2). |
| The battery is a specific type, please ensure it is replaced with the same type. Consult an approved dealer. |

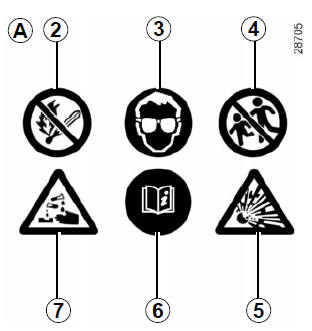

Label A
Observe the indications on the battery:
- 2 naked flames and smoking are forbidden;
- 3 eye protection required;
- 4 keep away from children;
- 5 explosive materials;
- 6 refer to the handbook;
- 7 corrosive materials.
| The engine may be hot
when carrying out operations
in close proximity. In
addition, the engine cooling
fan can come on at any moment. Risk of injury. |
