Renault Clio: Brake circuit: Operating diagram

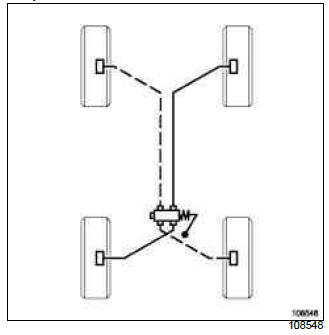

" X " braking system with load-sensitive compensator

Renault Clio. Brake circuit: Operating diagram

IMPORTANT

This is a diagram of the general principle, do not use it as a reference for take-off points or circuit allocation. When replacing components in a vehicle's braking circuit, always mark the pipes before removing them.

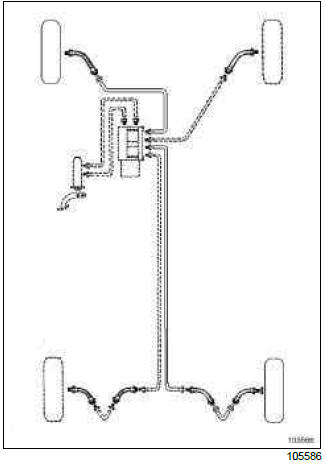

" X " braking system with ABS

Renault Clio. Brake circuit: Operating diagram

IMPORTANT

This is a diagram of the general principle, do not use it as a reference for take-off points or circuit allocation. When replacing components in a vehicle's braking circuit, always mark the pipes before removing them.

Brake circuit: Precautions for the repair

I - SAFETY

1 - Advice to be followed before any operation

For an operation requiring the use of a lift, follow the safety advice (see Vehicle: Towing and lifting) (02A, Lifting equipment).

The brake regulation circuit must be free of all hydraulic and electrical faults.

In case of incorrect handling, the brake fluid can cause serious injury and damage. Follow the manufacturer's instructions for brake fluid.

To prevent dust from entering the master cylinder reservoir and the brake circuit, the plug must be removed just before filling and closed immediately afterwards,

2 - Instructions to be followed during the operation

Do not press on the brake pedal during work on the brake system.

If, during work on the brake system, any damage on any part is observed, it must be repaired before driving the vehicle again.

Brake fluid is highly corrosive. Ensure any brake fluid spilt on parts of the vehicle is cleaned off.

Use brake fluids that comply with the Renault standard (see Vehicle: Parts and consumables for the repair).

Check the brake fluid levels in the braking circuit and the bleeding device.

Check that the pressure of the bleeding device is between 1.5 bar and 2 bar.

II - CLEANLINESS

1 - Advice to be followed before any operation

Protect any bodywork components that risk being damaged by brake fluid with a cover.

2 - Instructions to be followed during the operation

Fit blanking plugs recommended for the Siemens K9K injection system at the end of each pipe and in all the openings of the disconnected components of the brake circuit.

Clean around the braking system with BRAKE CLEANER (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products).

WARNING

Prepare for the flow of fluid, and protect the surrounding components.

Do not allow friction materials to come into contact with grease, oil or other lubricants and cleaning products which are mineral oil based.

III - GENERAL RECOMMENDATIONS

When replacing brake pads, always replace the pads on the other side as well.

When replacing a disc, always replace the disc on the opposite side.

When replacing brake discs, you must replace the brake pads.

WARNING

In order not to damage the brake hose:

IMPORTANT

To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.

Always replace the rigid brake pipe clips.

Reminder:

Renault Clio. Brake circuit: Precautions for the repair

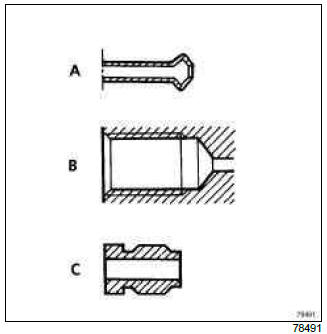

Parts identification:

Precautions to be taken before and during the brake circuit bleeding operation:
