Renault Clio: Underbody heights: Adjustment value

I - MEASURING POINTS

Renault Clio. Underbody heights: Adjustment value

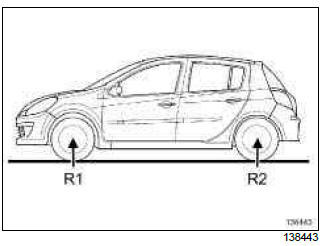

Radius under load:

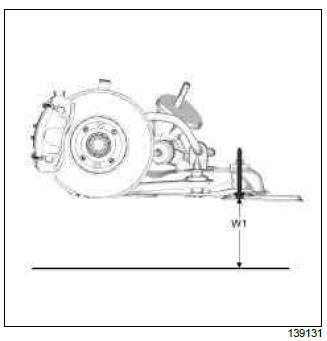

1 - Front height (W1)

Renault Clio. Underbody heights: Adjustment value

Renault Clio. Underbody heights: Adjustment value

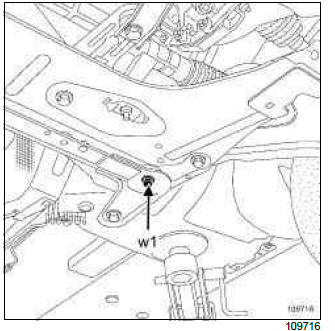

(W1) : Height between the ground and the rear cross member bolt head

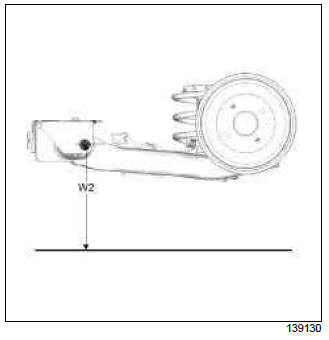

2 - Rear height (W2)

Renault Clio. Underbody heights: Adjustment value

Renault Clio. Underbody heights: Adjustment value

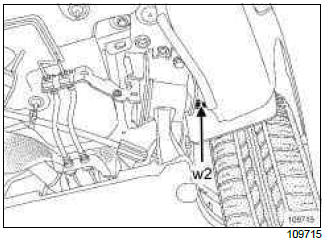

(W2) : Height between the ground and the shaft of the rubber bush on the bearing

II - MEASURING PROCEDURE

Note: For measurements (W1) and (W2), take into account the height difference between the plates and the lift.

Measure the heights:

Note: The value of Wx to be entered into the geometry bench is the average of the W1 heights, right-hand and left-hand and of the W2 heights, right-hand and left-hand.

Note: If the measuring points are located in empty space (between the rails of the lift), use a bar.

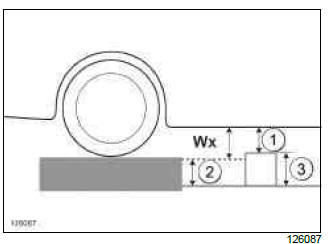

1 - Plate higher than the lift:

Renault Clio. Underbody heights: Adjustment value

Measure the heights (1), (2), (3).
Example: (1) = 13 cm, (2) = 8 cm, (3) = 10 cm.
Calculate the height Wx:
Wx = height (1) + height (3) - height (2)
Wx = 15 cm

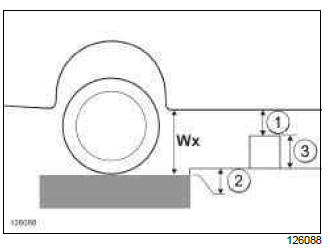

2 - Plate lower than the lift:

Renault Clio. Underbody heights: Adjustment value

Measure the heights (1), (2), (3).
Example: (1) = 8 cm, (2) = 10 cm, (3) = 4 cm.
Calculate the height Wx:
Wx = height (1) + height (2) + height (3)
Wx = 22 cm

III - VEHICLE IN RUNNING ORDER POSITION

VODM (Vehicle in working order) position:

EQUIPMENT LEVEL E3 LEISURE or EQUIPMENT LEVEL EA1 or EQUIPMENT LEVEL EA2 or EQUIPMENT LEVEL EA3 or EQUIPMENT LEVEL EA4 or EQUIPMENT LEVEL EA5 or EQUIPMENT LEVEL EAG

(W1) = 171 +- 13 mm
(W2) = 259 +- 16 mm

EQUIPMENT LEVEL EAC or EQUIPMENT LEVEL SPORT, and WITHOUT ADDITIONAL PACK

(W1) = 156 +- 5 mm
(W2) = 257 +- 16 mm

EQUIPMENT LEVEL EAC or EQUIPMENT LEVEL SPORT, and ADDITIONAL EXTREME PACK

(W1) = 148+7
-14mm
(W2) = 249+ 9
-16mm

Note:

The position of the vehicle varies according to:
