Renault Clio: Camshaft dephaser:
Removal - Refitting
M4R
- The engine and gearbox assembly must be removed
to remove/refit the camshaft dephaser (see
10A, Engine and cylinder block assembly, Engine
- gearbox assembly: Removal - Refitting, 10A-112).
- For the camshaft dephaser removal-refitting procedure
(see ) (Technical Note 6020A, 10A, Engine and
peripherals) and (see ) (Technical Note 6020A, 10A,
Engine and peripherals).
K4M

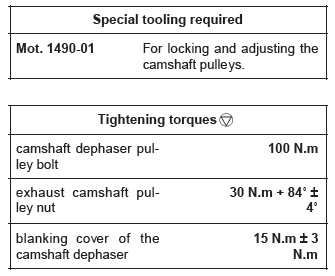

![Renault Clio. Camshaft dephaser: Removal - Refitting](images/books/2116/renault_clio_removal_refitting_1059.png)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Remove:
- the engine undertray bolts,
- the engine undertray,
- the windscreen wiper arms (see Windscreen wiper
arm: Removal - Refitting) (85A, Wiping -
Washing),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
- the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the battery (see Battery: Removal - Refitting)
(80A, Battery)
- the battery tray (see Battery: Removal - Refitting)
(80A, Battery),
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, 12A-17),
- the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, 12A-33),
- the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Exterior
protection).
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5),
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, 11A-31),
- the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, 19D-22),
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, 11A-48).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Camshaft dephaser: Removal - Refitting](images/books/2116/renault_clio_removal_refitting_1060.png)

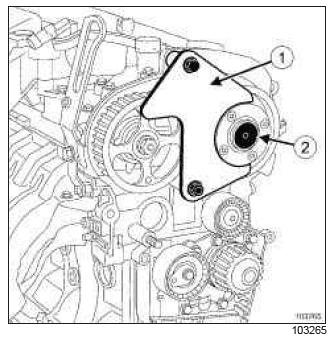

- Position the (Mot. 1490-01) (1).
- Remove the camshaft dephaser blanking cover (2).
![Renault Clio. Camshaft dephaser: Removal - Refitting](images/books/2116/renault_clio_removal_refitting_1061.png)

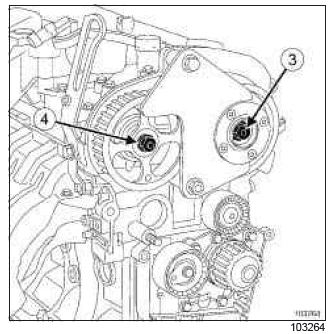

- Remove:
- the bolt (3) from the camshaft pulley dephaser,
- the exhaust camshaft pulley nut (4),
- the (Mot. 1490-01),
- the exhaust camshaft pulley.
- the camshaft dephaser pulley.
REFITTING
I - REFITTING PREPARATION OPERATION
- parts always to be replaced: Exhaust camshaft
pulley nut.
- parts always to be replaced: Camshaft dephaser
sprocket bolt.
WARNING
Failure to adhere to the following procedure may
cause the timing belt to be incorrectly timed.
- If fitting a new camshaft dephaser, check that it is
locked by following the procedure described below.
- Fit a stud to the camshaft dephaser hub and tighten
it.
![Renault Clio. Camshaft dephaser: Removal - Refitting](images/books/2116/renault_clio_removal_refitting_1062.png)

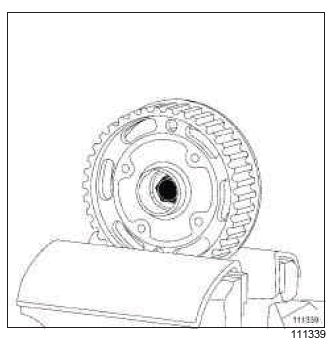

- Place the camshaft dephaser in a vice fitted with
jaws.
![Renault Clio. Camshaft dephaser: Removal - Refitting](images/books/2116/renault_clio_removal_refitting_1063.png)

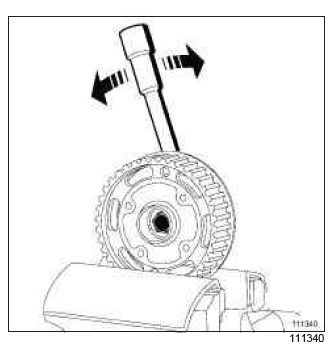

- Mechanically lock the camshaft dephaser by rotating
it to the left or right using a tubular hexagon box
spanner.
- Check that the camshaft dephaser is correctly
locked (no rotation of the hub in relation to the wheel
to the left or right).
- If there is a rotation of the hub in relation to the
wheel, the camshaft dephaser is faulty and must be
replaced.
- Degrease the end of the inlet camshaft (timing end)
and clean the bores and bearing faces of the camshaft
dephaser.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the exhaust camshaft pulley.
- the camshaft dephaser pulley,
- a new nut on the exhaust camshaft pulley,
- a new bolt on the camshaft dephaser pulley.
- Position the tool (Mot. 1490-01) on the camshaft
pulleys.
- Tighten to torque:
- the camshaft dephaser pulley bolt (100 N.m),
- the exhaust camshaft pulley nut (30 N.m + 84
