Renault Clio: Stop and Start Function

Renault Clio IV (2014-2019) Owners Manual / Driving / Stop and Start Function

This system enables a reduced fuel consumption and lower greenhouse gas emissions. The system is activated automatically when the vehicle is started. While driving, the system stops the engine (standby) when the vehicle is at a standstill (traffic jam, traffic lights, etc).

Conditions for engine standby

The vehicle has set off from where it was parked; For vehicles equipped with automatic gearboxes:

• the gearbox is in position D or N; and
• the brake pedal is depressed (sufficiently hard); and
• the accelerator pedal is not depressed; and
• the speed is zero for around 1 second.

The engine remains on standby if position P is selected, or if position N is selected with the handbrake engaged and the brake pedal released.

For vehicles equipped with manual gearboxes:

• the gearbox is in neutral; and
• The clutch pedal is released.

  If the warning light flashes,
  this means that the clutch pedal is not sufficiently released; and

• the vehicle speed is less than approximately 7 mph (3 km/h).

In all vehicles, the warning light
on the instrument panel is lit when the engine is on standby.

The vehicle equipment remain operational while the engine is stopped.

Keep your vehicle stationary when the engine is on standby (shown by the warning light on the instrument panel).

Preventing the engine from standing by

In certain situations, such as negotiating a crossroads for instance, it is possible to keep the engine running so as to be ready to move off quickly.

For vehicles equipped with automatic gearboxes: Keep the vehicle stationary without pressing too hard on the brake pedal For vehicles equipped with manual gearboxes: Keep the clutch pedal pressed right down

Conditions for coming out of engine standby

For vehicles equipped with automatic gearboxes:

• the brake pedal is released, position D engaged or,
• the brake pedal is released, position N engaged and the handbrake off, or
• the brake pedal is pressed again, with position P engaged or position N engaged with the handbrake applied, or
• position R is engaged or,
• the accelerator pedal is pressed.

For vehicles equipped with manual gearboxes:

• the gearbox is in neutral and the clutch pedal is slightly depressed, or
• the engine is in gear and the clutch pedal is pressed right down.

Conditions preventing the standby of the engine

Certain conditions prevent the system from using the engine standby function, including when:

• reverse gear is engaged;
• the bonnet is not locked;
• the driver’s door is not closed;
• the driver’s seatbelt is not fastened;
• the outdoor temperature is too low or too high (less than around 0 °C or higher than around 30 °C);
• the battery is not sufficiently charged;
• the difference between the vehicle interior temperature and the automatic climate control instruction is too high;
• for vehicles with automatic gearboxes, the gradient is steeper than approximately 12%;
• the “Clear View” function is activated (please see “Automatic Climate Control” in Section 3);
• the engine temperature is too low;
• the anti-pollution system is required; or
• ...

the warning light or, depending
on the vehicle, the message “AUTO STOP UNAVAILABLE” appears on the instrument panel indicating that engine standby is not available.

Special cases

With the engine on standby (traffic jam, traffic lights, etc.), if the driver unfastens their seat belt, opens the driver’s door or gets out of their seat, the ignition will be switched off.

To restart and reactivate the Stop and Start system, press the start button (please see “Starting, stopping the engine” in Section 2).

Special feature of the automatic engine re-start

Under certain conditions, the engine can restart on its own in order to guarantee your safety and comfort.

This can occur especially when:

• the outdoor temperature is too low or too high (less than around 0 °C or higher than around 30 °C);
• the “Clear View” function is activated (please see “Automatic Climate Control” in Section 3);
• the battery is not sufficiently charged;
• the vehicle speed is above 3 mph (5 km/h) (downhill slope, etc.);
• repeated pressing on the brake pedal or braking system requirement;
• ...

Deactivating, activating the function

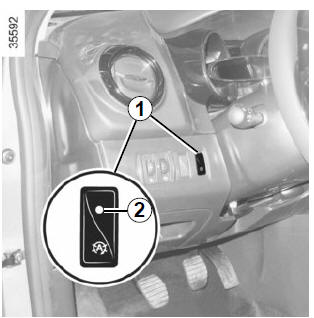

Press switch 1 to deactivate the function.

The message “Stop & Start deactivated” will appear on the instrument panel and the integrated warning light 2 on the switch will light up.

Pressing again will reactivate the system. The message “Stop & Start activated” will appear on the instrument panel and the integrated warning light 2 on switch 1 will go out.

The system reactivates automatically each time the vehicle is started using the start button (please refer to “Starting, stopping the engine” in Section 2).

Operating faults

When the message “Check Stop & Start” appears on the instrument panel and the integrated warning light 2 lights up on the switch 1, the system is deactivated.

Please consult an authorised dealer.
