Renault Clio: Charge circuit: Specifications
D4F or F4R or K4J or K4M or K9K or M4R

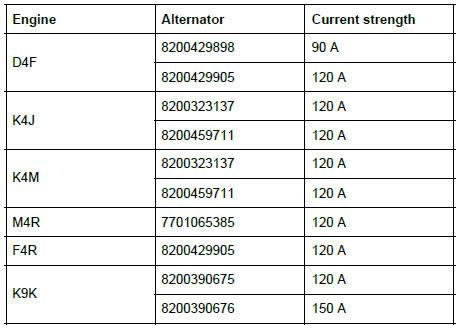

ALTERNATOR SPECIFICATIONS
![Renault Clio. Charge circuit: Specifications](images/books/2116/renault_clio_charge_circuit_specifications_1827.jpg)
Charge circuit: Function
D4F or F4R or K4J or K4M or K9K or M4R
OPERATION
These vehicles are fitted with a built-in regulator and an
instrument panel warning light which operates as follows:
- when the ignition is switched on, the warning light
comes on,
- the warning light goes out when the vehicle is started,
- if the warning light comes on while the engine is running,
it indicates a battery charge fault.
Charge circuit: Check
D4F or F4R or K4J or K4M or K9K or M4R
Check the current after 30 minutes of heating at a voltage of 13.5 V.

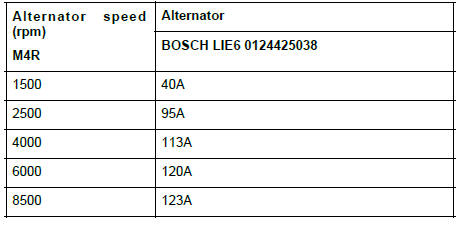

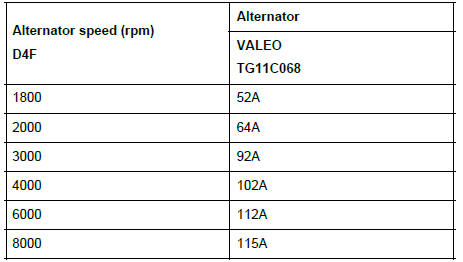

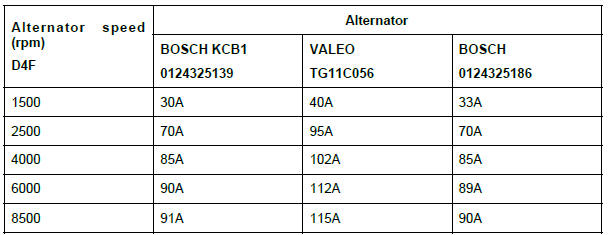

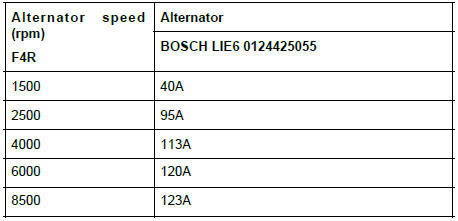

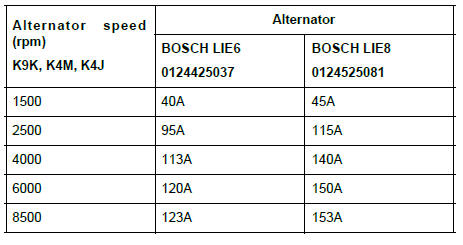

![Renault Clio. Charge circuit: Check](images/books/2116/renault_clio_charge_circuit_specifications_1828.jpg)
![Renault Clio. Charge circuit: Check](images/books/2116/renault_clio_charge_circuit_specifications_1829.jpg)
![Renault Clio. Charge circuit: Check](images/books/2116/renault_clio_charge_circuit_specifications_1830.jpg)
![Renault Clio. Charge circuit: Check](images/books/2116/renault_clio_charge_circuit_specifications_1831.jpg)
![Renault Clio. Charge circuit: Check](images/books/2116/renault_clio_charge_circuit_specifications_1832.jpg)
