Renault Clio: Electric windows

These systems operate with the ignition on or off, until one of the front doors is opened (limited to about 3 minutes).

Safety of rear occupants The driver can prevent operation of the rear electric windows by pressing switch 4. A confirmation message is displayed on the instrument panel.

Driver’s responsibility Never leave your vehicle with the RENAULT card inside and never leave a child (or a pet) unsupervised, even for a short while. They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or by locking the doors.

If any part of the body becomes trapped, reverse the direction of the window immediately by pressing the relevant switch.

Risk of serious injury.

Electric windows

Renault Clio. Electric windows

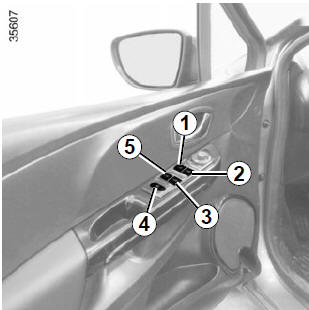

Press or pull the switch to raise or lower a window to the desired height (the rear windows do not open fully); From the driver’s seat, use switch:

  1. for the driver’s side;
  2. for the front passenger side;
  3. and 5 for the rear passenger windows.

Renault Clio. Electric windows

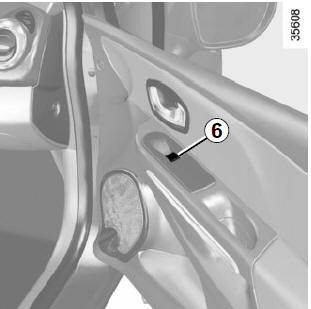

From the passenger seats, use switch 6.

Avoid resting any objects against a half-open window: there is a risk that the electric window could be damaged.

One-touch mode

Depending on the vehicle, this mode works in addition to the operation of the electric windows described previously.

It is only fitted to the driver’s window.

Briefly press or pull switch 1 fully: the window is fully lowered or raised.

Pressing the switch again stops the window moving.

NB: if the driver’s window detects resistance when closing (e.g.: fingers, branch of a tree, etc.), it stops and then lowers again by a few centimetres.

Closing windows can cause serious injury.

Operating faults

In case of a fault when closing a window, the system reverts to normal mode: pull the switch concerned up as often as necessary to fully close the window (the window will close gradually), hold the switch (still on the closure side) for one second then lower and raise the window fully to reinitialise the system.

If necessary, contact your authorised dealer.

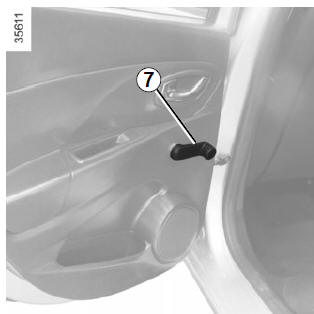

Manual window winder controls

Renault Clio. Manual window winder controls


Turn handle 7.
