Renault Clio: Flywheel: Removal - Refitting
D4F or F4R or K4J or K4M or K9K
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Disconnect the battery (see ) (80A, Battery).
- Remove:
- the gearbox (see Manual gearbox: Removal - Refitting)
(21A, Manual gearbox),
- the clutch pressure plate (see Pressure plate -
Disc: Removal - Refitting) (20A, Clutch).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

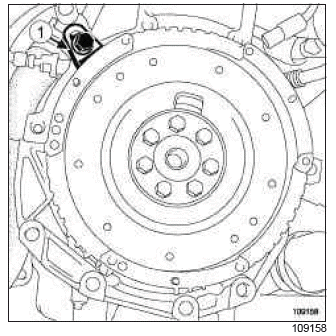

- Lock the flywheel using tool (Mot. 582-01) (1).
- Remove:
- the flywheel bolts,
- the flywheel,
- the (Mot. 582-01) (1).
REFITTING
I - REFITTING PREPARATION OPERATION
- parts always to be replaced: Flywheel bolts.
- Use SURFACE CLEANER (see ) (04B, Consumables
- Products) to clean and degrease:
- the flywheel bearing face if reusing,
- the crankshaft bearing face.
II - REFITTING OPERATION FOR PART
CONCERNED
K9K, and TL4
WARNING

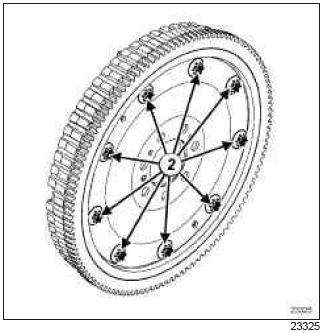

Do not remove the flywheel drive plate mounting bolts (2).
K9K, and JA5 or JH3 or JR5

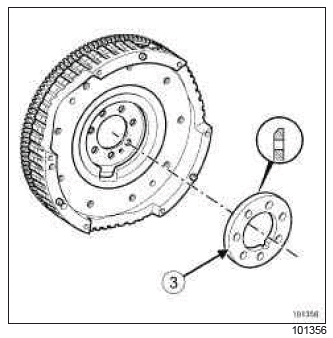

- Refit the spacer (3) observing the fitting direction of
the chamfer on the flywheel end.

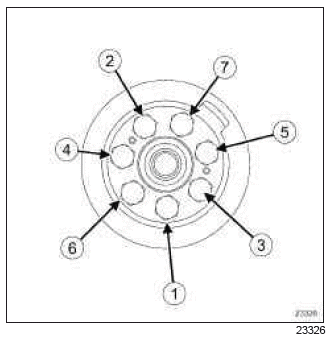

- Observe the tightening order.
K4J or K4M

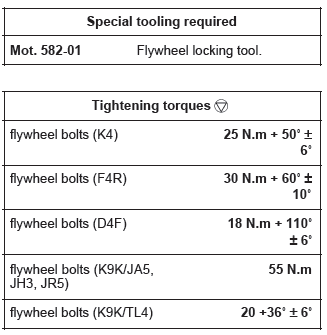

- Tighten in order and to torque the flywheel bolts
(K4) (25 N.m + 50
