Renault Clio: Front bumper: Removal - Refitting
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR392, 02, Lifting equipment).
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5447.jpg)

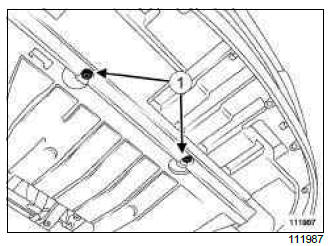

- Remove:
- the lower bolts (1).
- the front parts of the front wheel arch liners (see
55A, Exterior protection, Front wheel arch liner:
Removal - Refitting, 55A-41).
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5448.jpg)

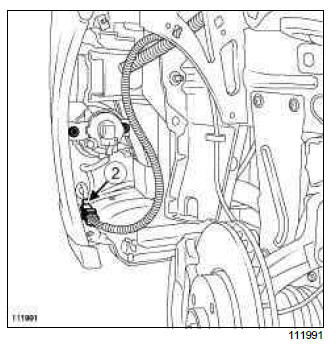

- Disconnect the connector (2) (depending on equipment
level).

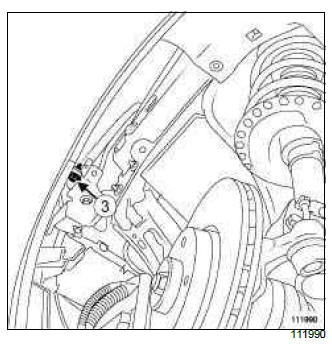

II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5449.jpg)
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5450.jpg)

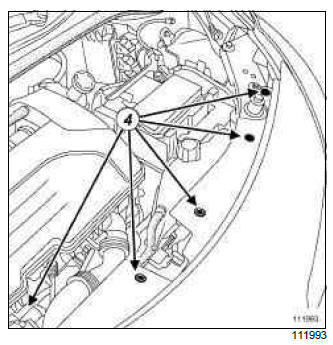

- Remove the bolts and clips (4).
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5451.jpg)

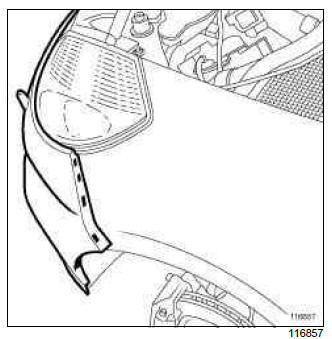

- Unclip the side sections of the front bumper.
- Remove the front bumper unit (this operation requires
two people).
- Disconnect the headlight washer jet supply (depending
on equipment level).
REFITTING
I - REFITTING PREPARATION OPERATION

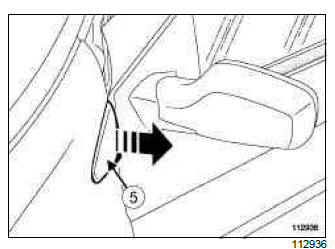

Note:

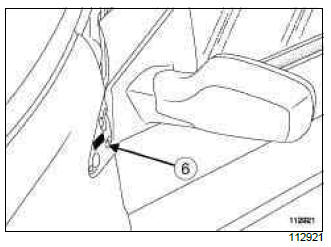

During a replacement operation, order the front
bumper according to the mark (6) on the front
wing of the vehicle:
- tyre size smaller than or equal to 185 = mark on
front wing (6) which reads 185,
- tyre size 195 = mark on front wing (6) which
reads 195.
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5452.jpg)
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5453.jpg)
II - REFITTING OPERATION FOR PART
CONCERNED
- Reconnect the headlight washer jet supply (depending
on equipment level).

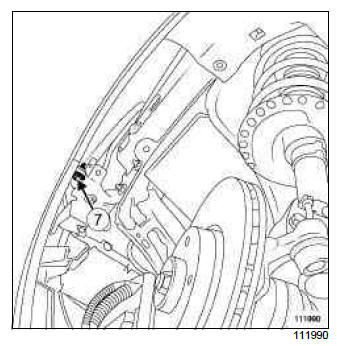

- Refit the front bumper unit (this operation requires
two people).
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5454.jpg)
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5455.jpg)

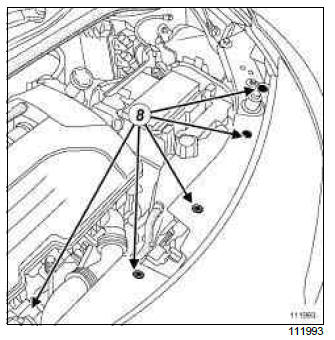

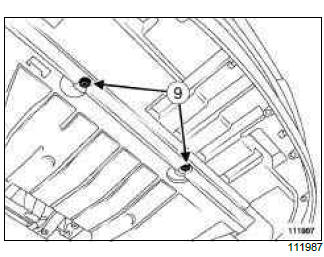

- Refit the bolts and clips (8).
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5456.jpg)
III - FINAL OPERATION.
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5457.jpg)

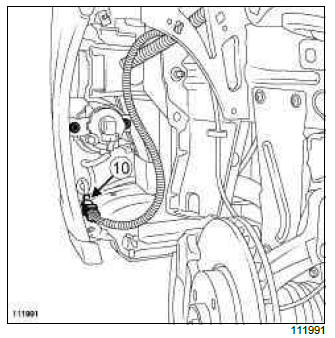

- Reconnect the connector (10) (depending on equipment
level).
- Test all of the functions with a function test (depending
on equipment level).
- Refit the front parts of the front wheel arch liners
(see 55A, Exterior protection, Front wheel arch
liner: Removal - Refitting, 55A-41).
Front bumper: Conversion
HEADLIGHT WASHERS WITH BLADE
ADAPTATION

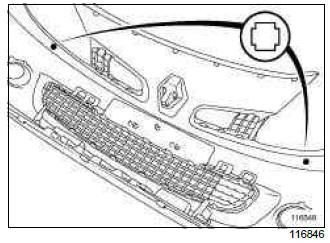

Note:
When a front bumper is replaced, the replacement
part needs to be modified before it is
painted so that the headlight washer jets can be
fitted.
![Renault Clio. Front bumper](images/books/2116/renault_clio_front_bumper_removal_refitting_5458.jpg)
- Make the conversion using the special tool (part no:
77 11 419 232).
