Renault Clio: Opening Element Management

Opening elements management: List and location of components

  1. UCH
  2. Renault card (simple or hands-free)

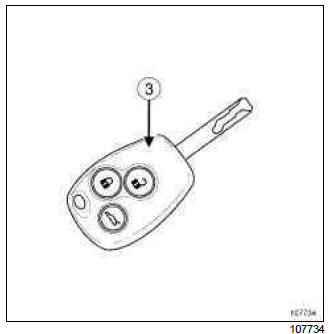

  3. Key equipped with remote control locking
  4. Locking - unlocking motor
  5. Specific reception receivers in the handles and the rear bumper
  6. Proximity and movement sensor
  7. Locking button on the handles
  8. Tailgate locking switch
  9. Tailgate lock
  10. Tailgate opening switch

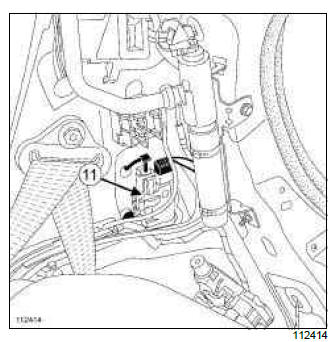

  11. Lock motor for the fuel filler flap
  12. Central locking switch

I - UCH

Renault Clio. Opening elements management: List and location of components

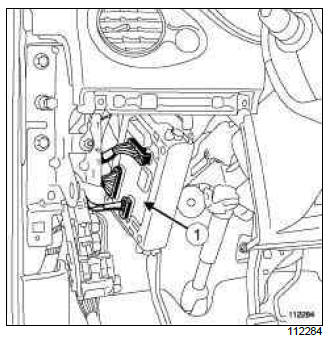

UCH (1)

II - RENAULT CARD

Renault Clio. Opening elements management: List and location of components

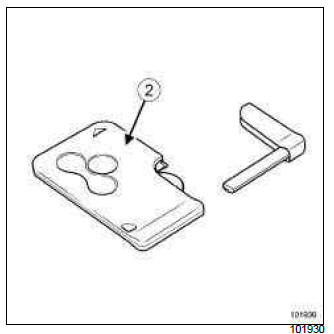

RENAULT card (2) (simple or hands-free)

III - REMOTE CONTROL KEY

Renault Clio. Opening elements management: List and location of components

Remote control key (3)

IV - DOOR LOCKING / UNLOCKING MOTOR

Renault Clio. Opening elements management: List and location of components

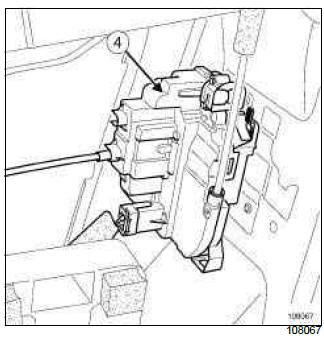

Locking - unlocking motor integrated in the door locks (4)

V - OPENING RECEIVERS INTEGRATED IN HANDLES WITH HANDS-FREE FUNCTION AND THE REAR BUMPER

Renault Clio. Opening elements management: List and location of components

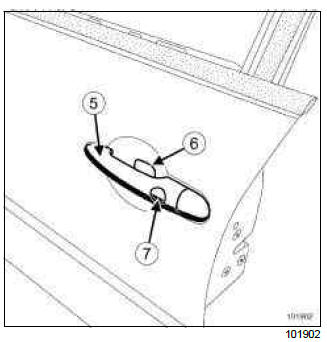

Opening receiver integrated in the exterior handles (5) (hands-free version)
Presence and motion sensor (6) (hands-free version),
Locking button (7) (hands-free version)

Renault Clio. Opening elements management: List and location of components

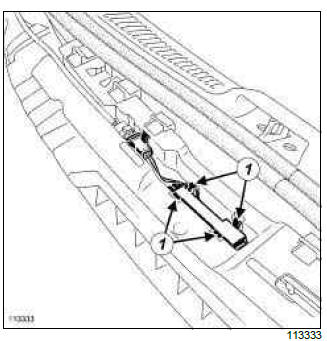

Opening receiver integrated in the rear bumper

VI - HANDS-FREE TAILGATE SWITCH

Renault Clio. Opening elements management: List and location of components

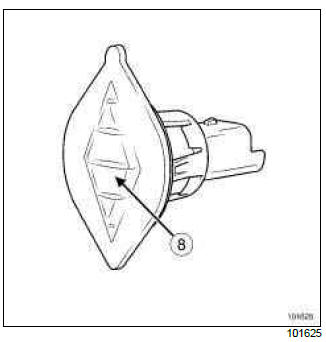

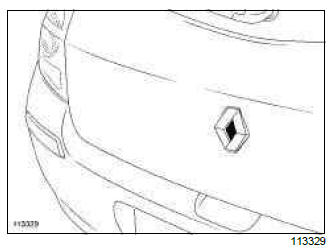

Tailgate locking switch (8) (hands-free version)

VII - TAILGATE LOCK

Renault Clio. Opening elements management: List and location of components

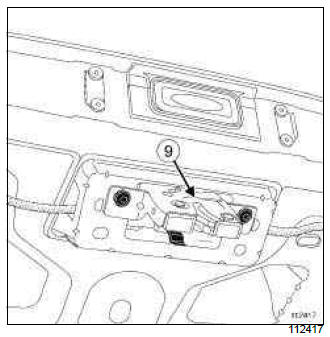

Tailgate lock (9)

VIII - TAILGATE OPENING SWITCH

Renault Clio. Opening elements management: List and location of components

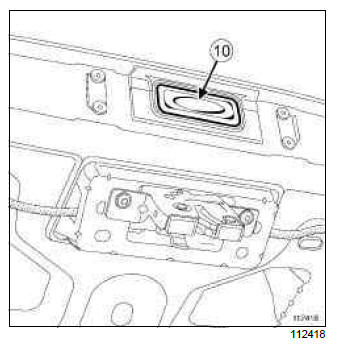

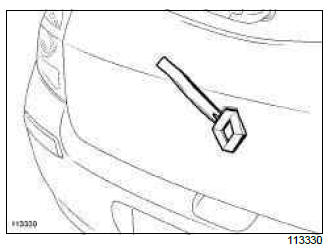

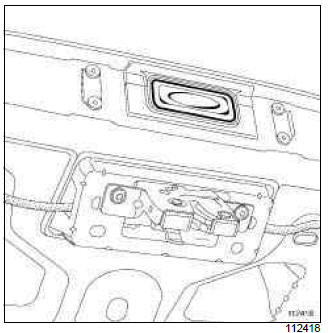

Tailgate opening switch (10)

IX - LOCK MOTOR FOR THE FUEL FILLER FLAP

Renault Clio. Opening elements management: List and location of components

Lock motor for the fuel filler flap (11)

X - CENTRAL LOCKING SWITCH

Renault Clio. Opening elements management: List and location of components

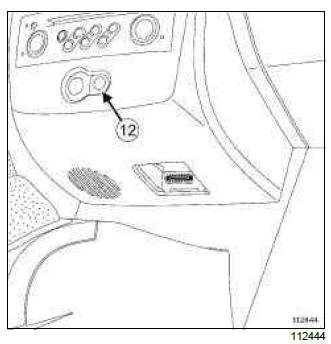

Central door locking switch (12)

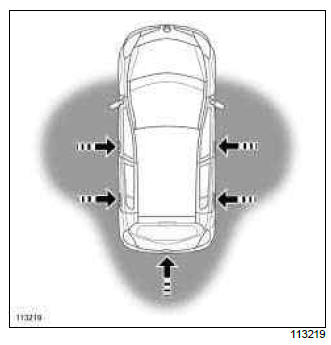

XI - LOCATION OF OPENING RECEIVERS AND COVERAGE ZONE

These receivers are only fitted to hands-free version vehicles.

Renault Clio. Opening elements management: List and location of components

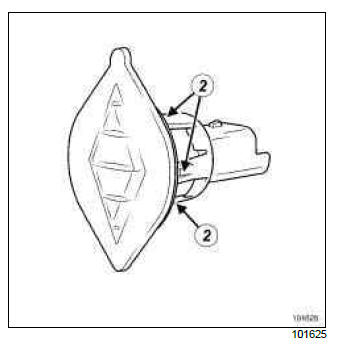

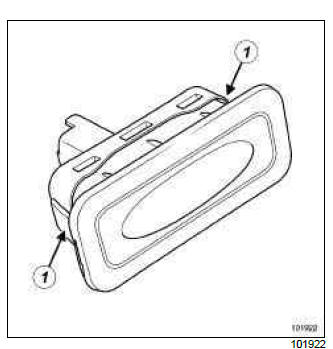

Tailgate opening switch: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

II - OPERATION FOR REMOVAL OF PART CONCERNED

Renault Clio. Tailgate opening switch: Removal - Refitting

Renault Clio. Tailgate opening switch: Removal - Refitting

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

II - FINAL OPERATION.

Tailgate locking switch: Removal - Refitting

VEHICLE WITH CARD

Renault Clio. Tailgate locking switch: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Note: The tailgate locking switch is only present on vehicles equipped with hands-free.

Renault Clio. Tailgate locking switch: Removal - Refitting

II - OPERATION FOR REMOVAL OF PART CONCERNED

Renault Clio. Tailgate locking switch: Removal - Refitting

Renault Clio. Tailgate locking switch: Removal - Refitting

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

II - FINAL OPERATION.

Renault Clio. Tailgate locking switch: Removal - Refitting

Fuel filler flap locking motor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Renault Clio. Fuel filler flap locking motor: Removal - Refitting

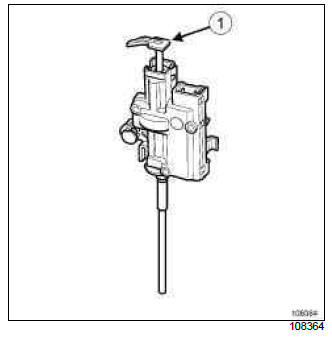

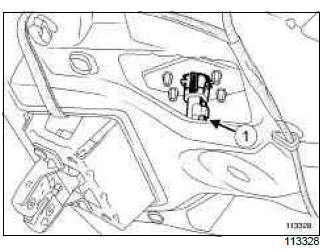

Note: During an electrical fault, activate the motor manually by raising the catch (1).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Renault Clio. Fuel filler flap locking motor: Removal - Refitting

REFITTING

I - REFITTING PART CONCERNED

II - FINAL OPERATION.

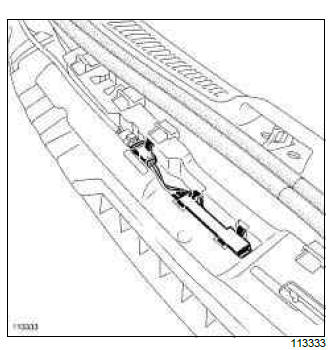

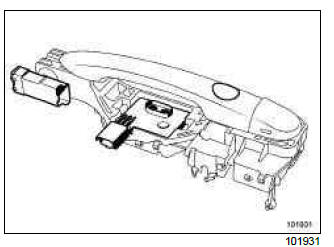

Opening aerial: Removal - Refitting

VEHICLE WITH CARD

REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Opening aerials integrated in the door handles

2 - Opening receiver integrated in the rear bumper

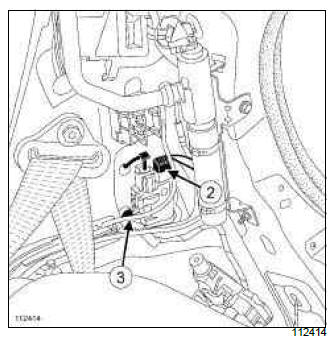

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Opening aerials integrated in the door handles

Renault Clio. Opening aerial: Removal - Refitting

2 - Opening receiver integrated in the rear bumper

Renault Clio. Opening aerial: Removal - Refitting

REFITTING

REFITTING OPERATION FOR PART CONCERNED

1 - Opening aerials integrated in the door handles

2 - Opening receiver integrated in the rear bumper
