Renault Clio: Intercooler: Removal - Refitting
K9K - D4F, and 784 or 786

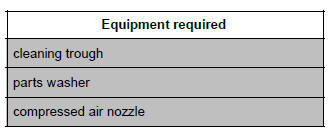

![Renault Clio. Intercooler: Removal - Refitting](images/books/2116/renault_clio_intercooler_removal_refitting_1518.jpg)
Note:
Vehicles equipped with the K9K*768 engine may or
may not be equipped with an intercooler.
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
- Remove:
- the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protection).
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
![Renault Clio. Intercooler: Removal - Refitting](images/books/2116/renault_clio_intercooler_removal_refitting_1519.jpg)

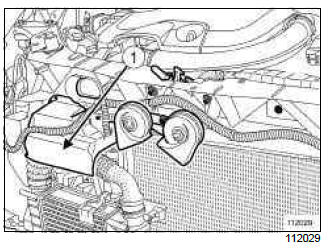

- Remove the air deflector (1) from the intercooler.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Intercooler: Removal - Refitting](images/books/2116/renault_clio_intercooler_removal_refitting_1520.jpg)

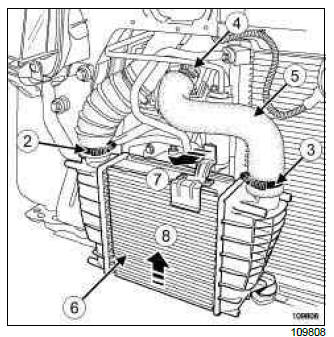

- Loosen the clips (2), (3) and (4) of the intercooler air
inlet and outlet pipes.
Note:
Whenever the clip (3) of the intercooler air outlet
pipe is removed, only the flexible part (5) of the
pipe must be replaced.
- Disconnect the intercooler air inlet and outlet pipes.
- Move aside the intercooler air inlet and outlet pipes.
- Remove the flexible part of the intercooler outlet pipe (5).
- Remove the intercooler (6) in the direction of the arrows (7) and (8).
REFITTING
I - REFITTING PREPARATION OPERATION
- Check that the intercooler is not full of oil. If it is,
clean it with a cleaning trough or with a parts
washer then dry it with a compressed air nozzle.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit the flexible part of the intercooler air outlet pipe.
- Tighten the clip (4) of the flexible part of the intercooler
air outlet pipe.
- Refit the intercooler.
- Connect the intercooler air inlet and outlet pipes.
- Tighten the clips of the intercooler air inlet and outlet
pipes.
III - FINAL OPERATION
- Refit:
- the intercooler air deflector,
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (55A, Exterior protection).
