Renault Clio: Rear brake calliper: Removal - Refitting

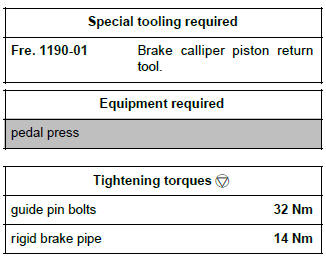

![Renault Clio. Rear brake calliper: Removal - Refitting](images/books/2116/renault_clio_rear_brake_calliper_removal_refitting_3046.jpg)
Note:
The callipers supplied as replacement parts are
pre-filled.
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle: Towing and
lifting).
WARNING
Prepare for brake fluid outflow, to prevent damage
to the mechanical parts and bodywork
around the braking system.
- Release the parking brake.
- Fit the pedal press to the brake pedal to limit the
outflow of brake fluid.
- Remove the rear wheel on the side concerned (see
35A, Wheels and tyres, Wheel: Removal - Refitting, 35A-1).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Rear brake calliper: Removal - Refitting](images/books/2116/renault_clio_rear_brake_calliper_removal_refitting_3047.jpg)

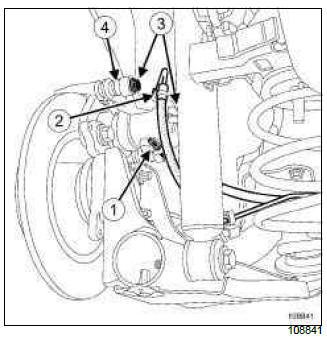

- Unclip the parking brake cable (1).
- Remove the rigid brake pipe union (2).
- Remove:
- the guide pin mounting bolts (3), holding the nuts (4),
- the calliper,
- the brake pads.
- Fit a cap on the rigid brake pipe union.
REFITTING
I - REFITTING PREPARATIONS OPERATION
- Check the condition of the calliper piston boot.
- Replace any faulty parts.
- Clean the backplate and the calliper.
![Renault Clio. Rear brake calliper: Removal - Refitting](images/books/2116/renault_clio_rear_brake_calliper_removal_refitting_3048.jpg)

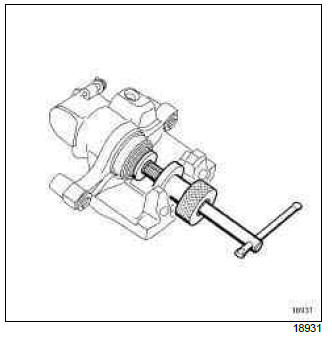

- Push the piston back using the (Fre. 1190-01) until it
is at the end of its bore.
- Always replace the guide pin bolts after each removal.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the brake pads,
- the calliper,
- the new guide pin bolts,
- the rigid brake pipe union.
- Torque tighten:
- the guide pin bolts (32 Nm),
- the rigid brake pipe (14 Nm).
- Refit the parking brake cable.
- Check that the parking brake cable stop is properly
engaged in its housing.
III - FINAL OPERATION.
- Bleed the brake circuit (see 30A, General information,
Braking circuit: Bleed, 30A-4).
- Check the brake fluid level.
- Refit the wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1).
WARNING
Depress the brake pedal several times to bring
the pistons, brake pads and discs into contact.
