Renault Clio: Rear brake calliper: Repair
WARNING
Prepare for the flow of fluid, and protect the surrounding
components.
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Release the parking brake.
- Remove the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1).
- Position the pedal press on the brake pedal to limit
the outflow of brake fluid.
- Remove the rear brake calliper (see 33A, Rear axle
components, Rear brake calliper: Removal - Refitting, 33A-8).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

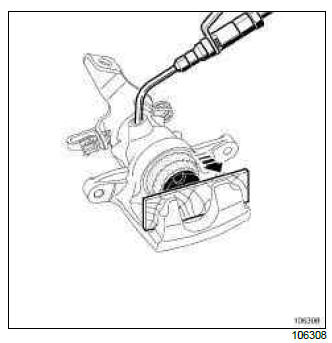

- Remove the piston using compressed air, making
sure to insert a wooden block between the calliper
and the piston.
- Remove the dust seal.

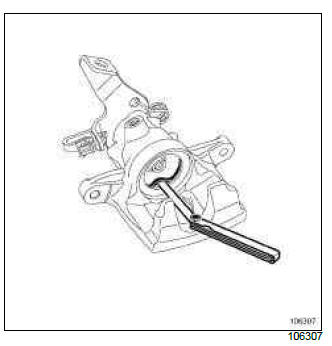

- Remove the rectangular section seal from the calliper
groove with a round edged spring blade (feeler
gauge).
- Replace the complete calliper if the bore is
scratched.
- Clean the parts using methylated spirit.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the rectangular section seal in the calliper groove,

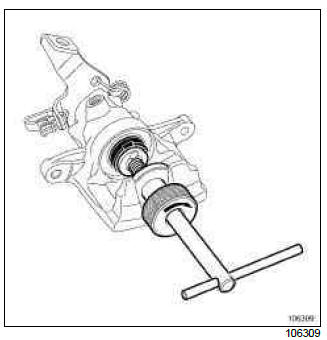

- the piston (after having smeared it with the grease

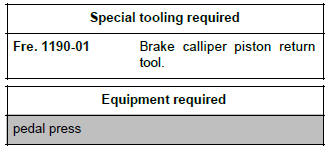

supplied in the repair kit) using the (Fre. 1190-01),
- the dust seal.
II - FINAL OPERATION.
- Refit:
- the brake calliper (see 33A, Rear axle components,
Rear brake calliper: Removal - Refitting, 33A-8),
- the rear wheels (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, 35A-1).
- Remove the pedal press.
- Bleed the brake circuit (see 30A, General information,
Braking circuit: Bleed, 30A-4).
IMPORTANT
To avoid any accident, bring the pistons, brake
pads and brake discs into contact by depressing
the brake pedal several times.
