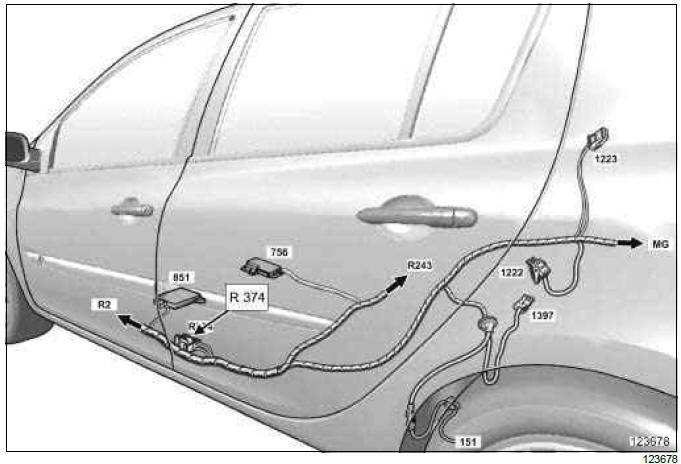

I - LOCATION OF CONNECTORS

• R 374 connectors (left-hand rear wiring/front wiring connection).

B85 or K85

• R 2 connector (left-hand rear wiring/dashboard wiring connection).
• R 13 connector (left-hand rear wiring/left-hand rear door wiring connection).
• R 324 connector (left-hand rear wiring/left-hand front seat electrical function wiring connection).

C85 or S85

• R 2 connector (left-hand rear wiring/dashboard wiring connection).
• R 324 connector (left-hand rear wiring/left-hand front seat electrical function wiring connection).

B85 or K85

• R 243 connector (left-hand rear wiring/right-hand rear door wiring).
• R 323 connector (left-hand rear wiring/right-hand front seat electrical functions wiring connection).

C85 or S85

• R 323 connector (left-hand rear wiring/right-hand front seat electrical functions wiring connection).

• R 319 connector (left-hand rear wiring/rear bumper wiring connection).
• R 325 connector (left-hand rear wiring/second fitting alarm wiring).

II - ACCESS TO CONNECTORS

IMPORTANT

Consult the safety and cleanliness advice and operation recommendations before carrying out any repair (see 88A, Wiring harness, Wiring: Precautions for the repair, 88A-5).

WARNING

To prevent damaging the connectors, consult the disconnection procedure (see Connector: Disconnection and reconnection) (Technical Note 6015A, 88A, Wiring).

• Switch off the ignition.
• Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, 80A-1).

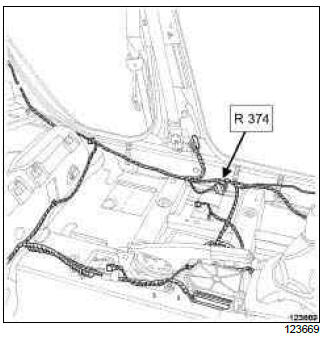

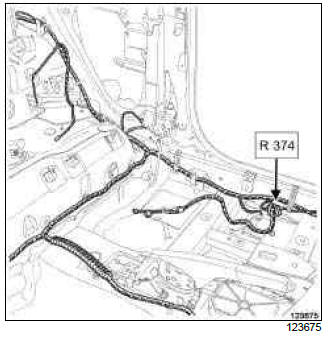

1 - Access to the R 374 connectors

• Remove the left-hand front door sill lining (see Front door sill lining: Removal - Refitting) (MR 393, 71A, Body internal trim).
• Partially remove the front centre floor carpet,

B85 or K85

• Disconnect the R 374 connector.

C85 or S85

• Disconnect the R 374 connector.

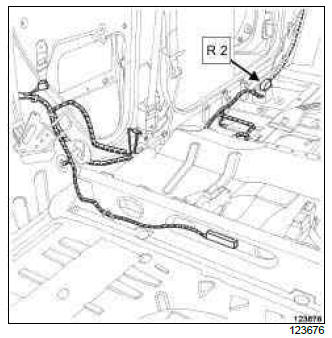

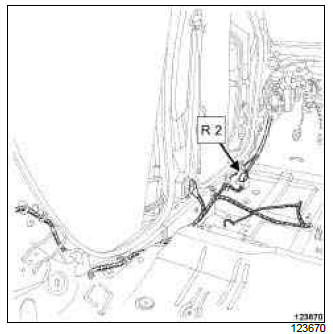

2 - Access to the R 2 connector

• Remove the left-hand front door sill lining (see Front door sill lining: Removal - Refitting) (MR 393, 71A, Body internal trim).
• Partially remove the front centre floor carpet,

B85 or K85

• Disconnect the R 2 connector.

C85 or S85

• Disconnect the R 2 connector.

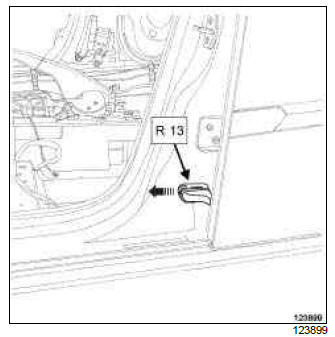

3 - Access to the R 13 connector

B85 or K85

• Disconnect the R 13 connector.

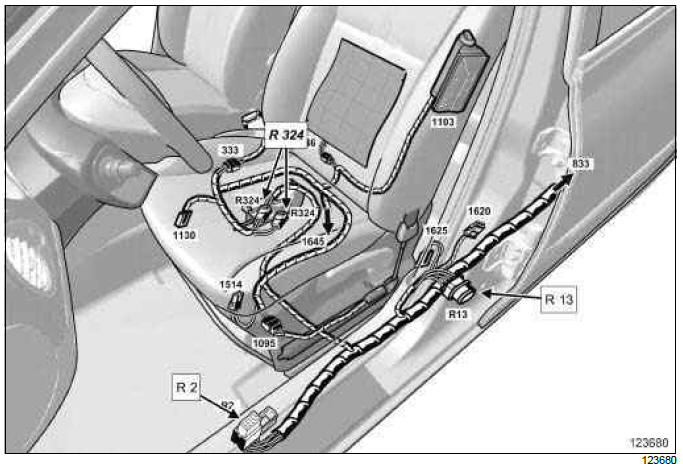

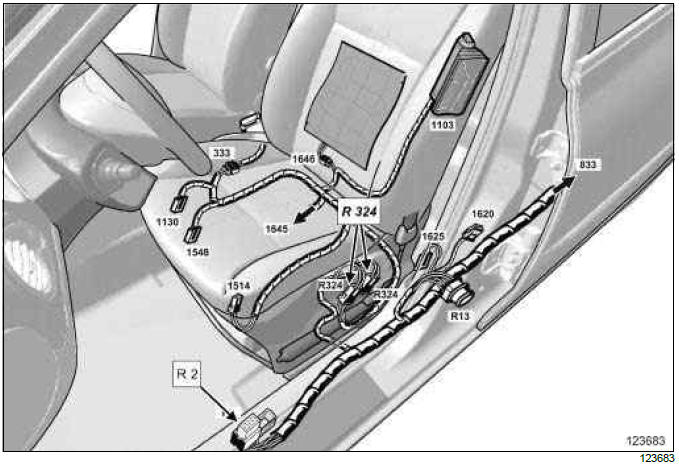

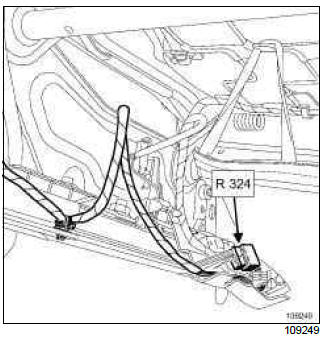

4 - Access to the R 324 connectors

B85 or K85

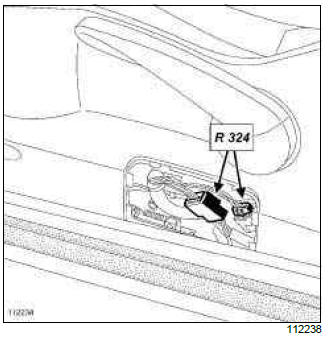

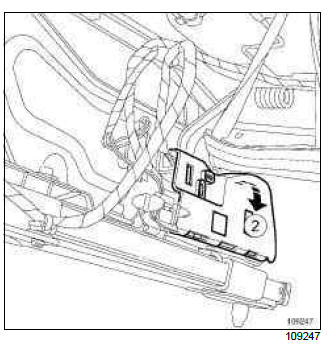

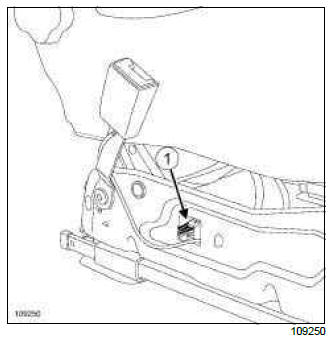

• Unfasten clip (1).

• Open the connector access flap (2).

• Disconnect the R 324 connector.

C85 or S85

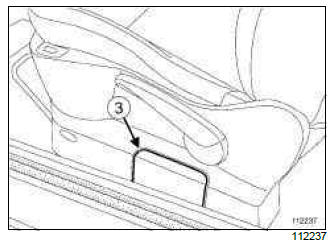

• Remove the connectors access flap (3).

• Disconnect the R 324 connectors.

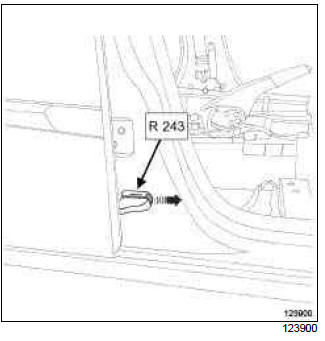

5 - Access to the R 243 connector

B85 or K85

• Disconnect the R 243 connector.

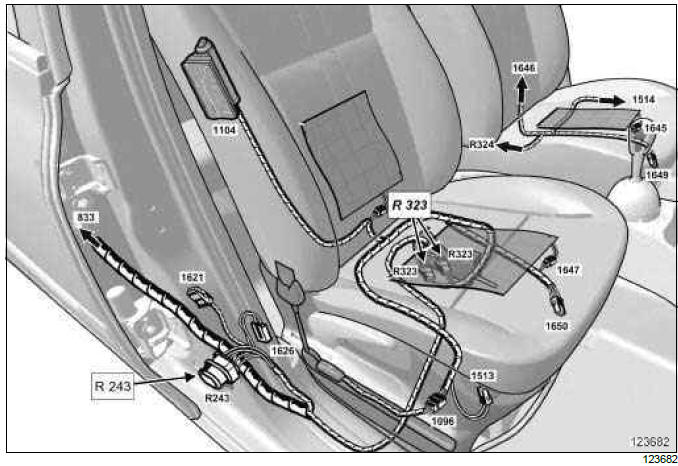

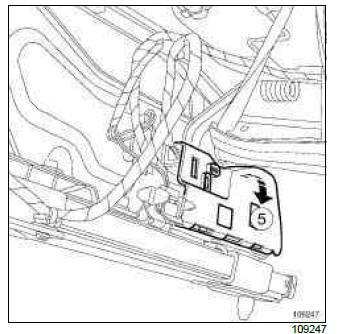

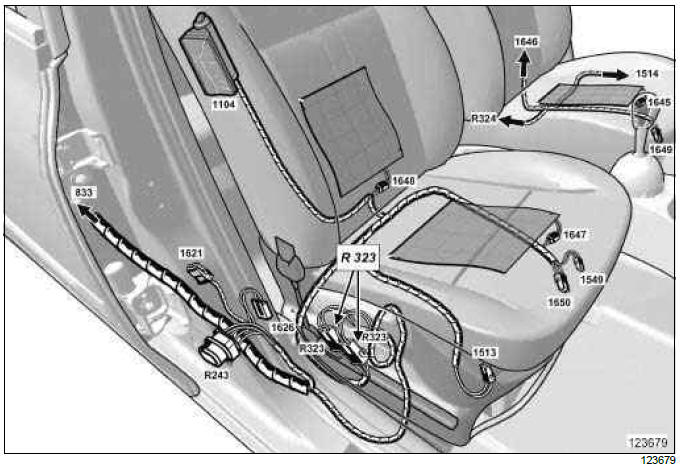

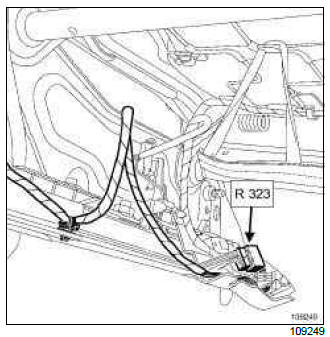

6 - Access to the R 323 connectors

B85 or K85

• Unfasten clip (4).

• Open the connector access flap (5).

• Disconnect the R 323 connector.

C85 or S85

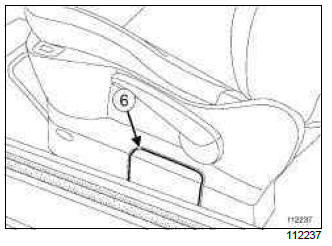

• Remove the connectors access flap (6).

• Disconnect the R 323 connectors.

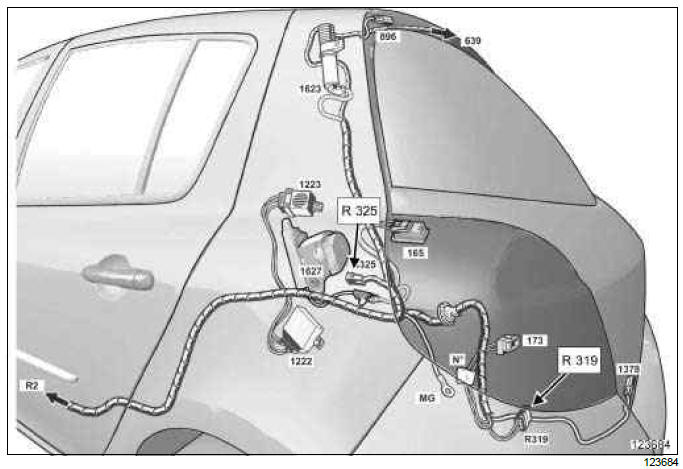

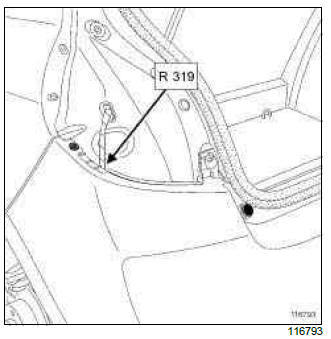

7 - Access to the R 319 connector

• Remove the rear light on the left rear wing (see 81A, Rear lighting, Rear wing light: Removal - Refitting, 81A-5).

• Disconnect the R 319 connector.

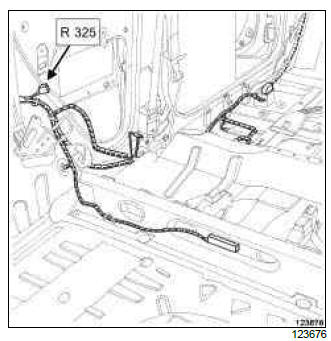

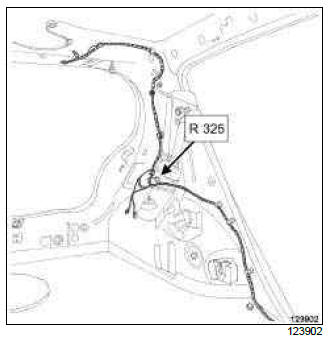

8 - Access to the R 325 connector

B85 or K85

• Remove:
  • the left-hand rear quarter panel trim (see Quarter panel trim: Removal - Refitting) (MR 393, 71A, Body internal trim),
  • the rear left-hand wheel arch liner (see Rear wheel arch trim: Removal - Refitting) (MR 393, 71A, Body internal trim).

• Disconnect the R 325 connector.

C85 or S85

• Remove:
  • the left-hand rear quarter panel trim (see Quarter panel trim: Removal - Refitting) (MR 393, 71A, Body internal trim),
  • the rear left-hand wheel arch liner (see Rear wheel arch trim: Removal - Refitting) (MR 393, 71A, Body internal trim).

• Disconnect the R 325 connector.
