Renault Clio: Sequential gearbox oil: Specifications
5-SPEED MANUAL SEQUENTIAL GEARBOX

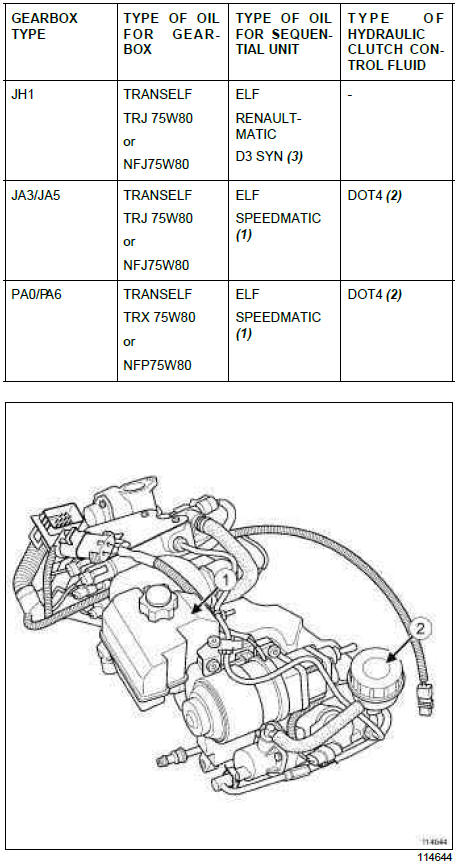

I - GEARBOX TYPE/OIL TYPE CORRELATIONS:
![Renault Clio. Sequential gearbox](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2689.jpg)

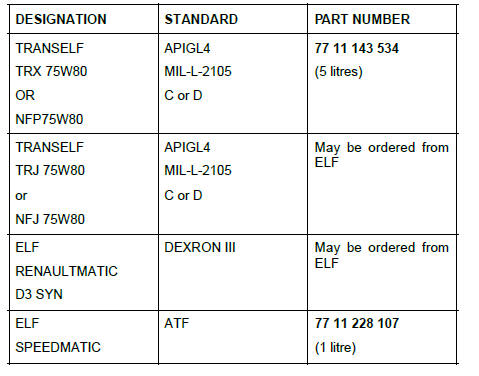

II - STANDARDS AND PART NUMBERS OF THE
VARIOUS RECOMMENDED OILS:
![Renault Clio. Sequential gearbox](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2690.jpg)
Sequential gearbox: Bleeding
![Renault Clio. Sequential gearbox](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2691.jpg)
I - PROCEDURE
![Renault Clio. Sequential gearbox](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2692.jpg)
WARNING
- Even a tiny air bubble can cause a malfunction.
- Incorrect bleeding may cause fault finding
errors and lead to an unnecessary part replacement.
II - GEARBOX REMOVED
WARNING
When removing the hydraulic clutch tappet, fill
the tappet with an approved fluid (see 21B,
Sequential gearbox, Sequential gearbox oil:
Specifications, 21B-82) before refitting the
gearbox, following the procedure described
below.

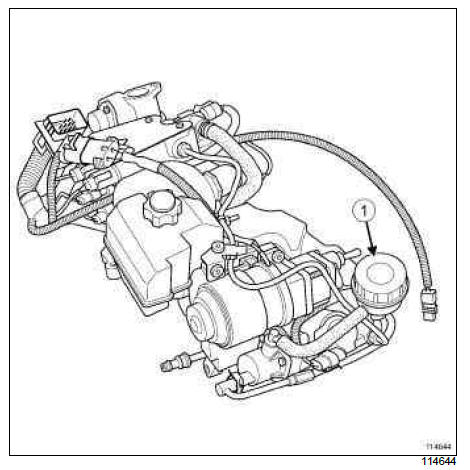

- Fill the reservoir (1) with approved clutch circuit fluid.
- Activate the clutch tappet manually (releasing/engaging
the clutch) until releasing/engaging the
clutch becomes very difficult, without releasing any
air bubbles. If necessary use the fluid (DOT4) to fill
the reservoir.
III - GEARBOX IN POSITION
- Drain the reservoir of approved clutch circuit fluid.
- Remove the bleed screw cap.
- Connect a transparent tube to the bleed screw, connected
to a syringe with an effective volume of 60
cm3 filled with approved fluid.
- Push the clutch pipe retaining clip and pull the pipe
so that it is in the bleed position.
- Slowly inject the fluid in the syringe, making sure
that the fluid does not overflow out of the reservoir.
- Carry out the Intake - Reflux operations slowly using
the syringe until all of the air bubbles have disappeared.
- Push the pipe back into the retaining clip.
- Perform an auto-bleed using the Diagnostic tool.
- Check that the system is operating correctly by carrying
out a road test.
- The level is correct when the fluid is halfway up the
reservoir.
Electro-hydraulic unit: List and location of
components

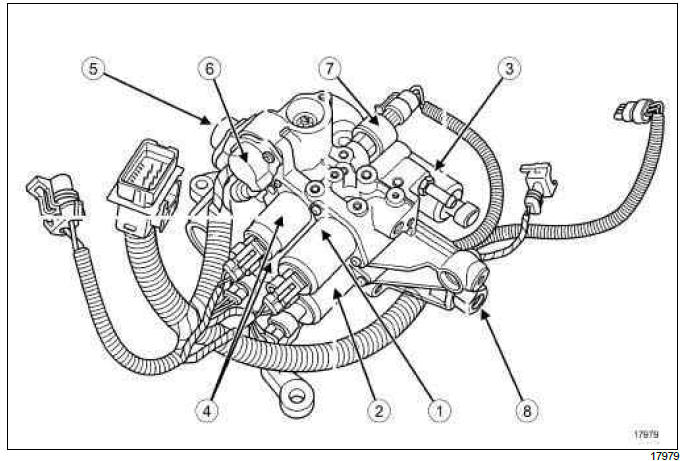

D4F, and JA3
![Renault Clio. Electro-hydraulic unit: List and location of components](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2693.jpg)
- Clutch solenoid valve
- Gear engagement solenoid
valve
- Gear engagement solenoid
valve
- Selection solenoid valve
- Engagement sensor
- Gear selection sensor
- Solenoid valve unit pressure
sensor
- High pressure filter

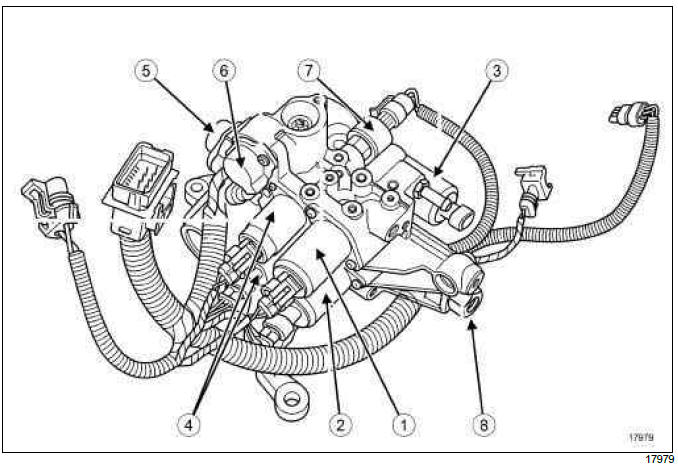

K9K, and JA5
![Renault Clio. Electro-hydraulic unit: List and location of components](images/books/2116/renault_clio_sequential_gearbox_oil_specifications_2694.jpg)
- Clutch solenoid valve
- Gear engagement solenoid
valve
- Gear engagement solenoid
valve
- Selection solenoid valve
- Engagement sensor
- Gear selection sensor
- Solenoid valve unit pressure
sensor
- High-pressure filter
