Renault Clio: Suspended engine mounting: Tightening torque

Renault Clio III (2005-2013) Service Manual / Engine And Peripherals / Engine Mounting / Suspended engine mounting: Tightening torque

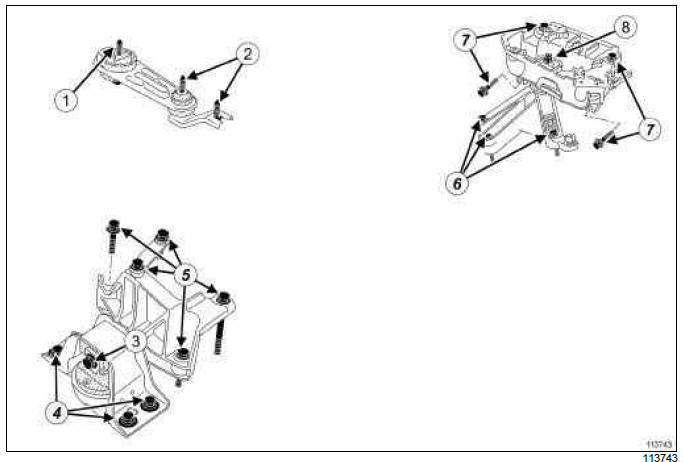

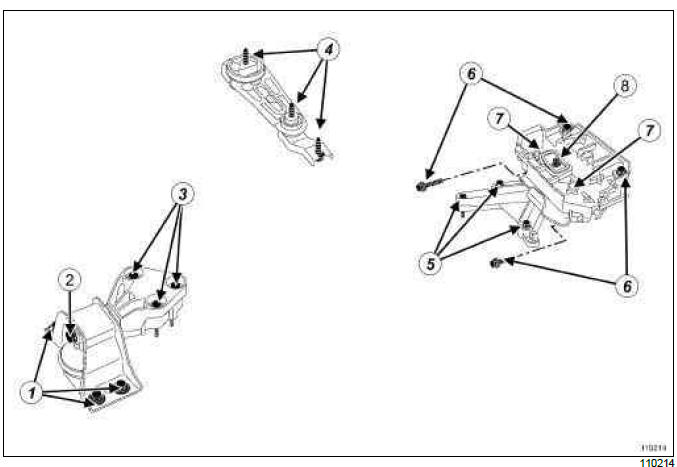

D4F

Renault Clio. Suspended engine mounting: Tightening torque

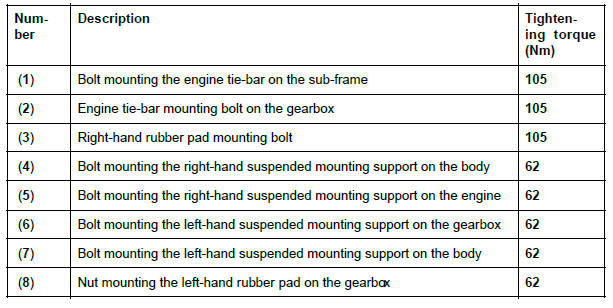

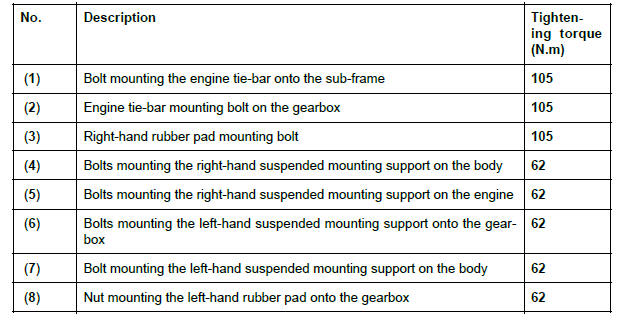

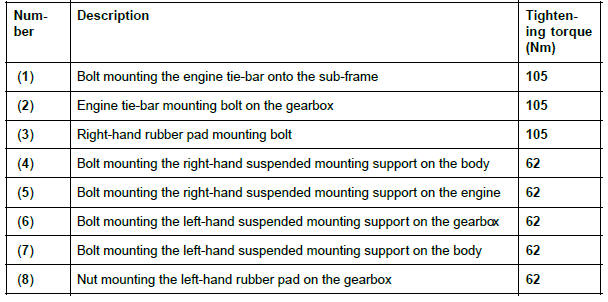

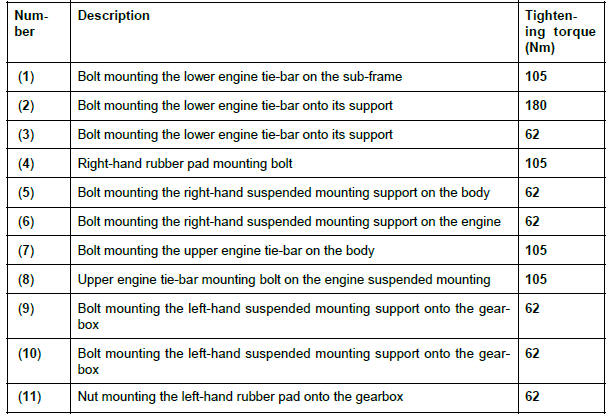

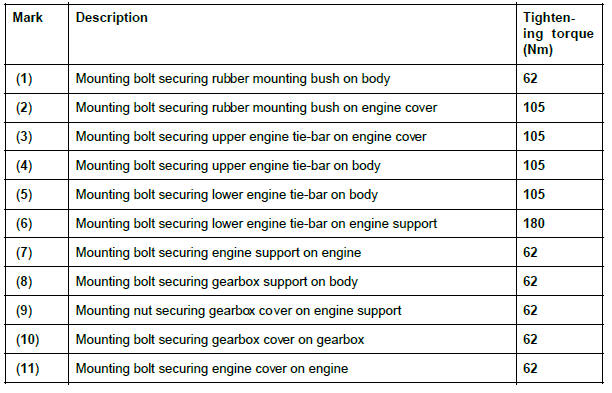

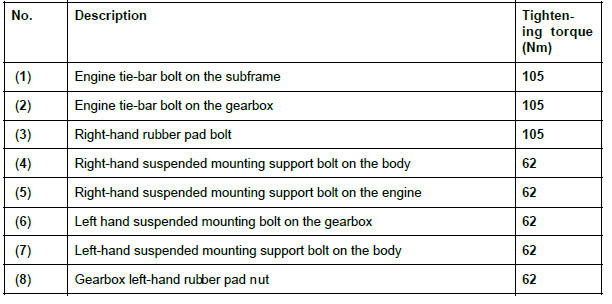

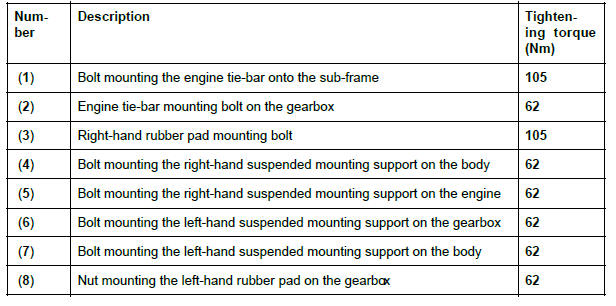

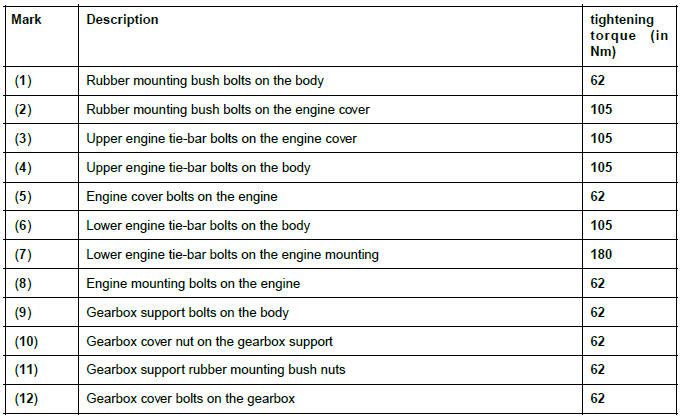

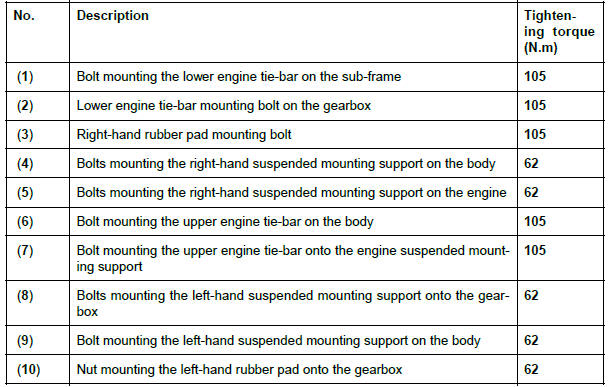

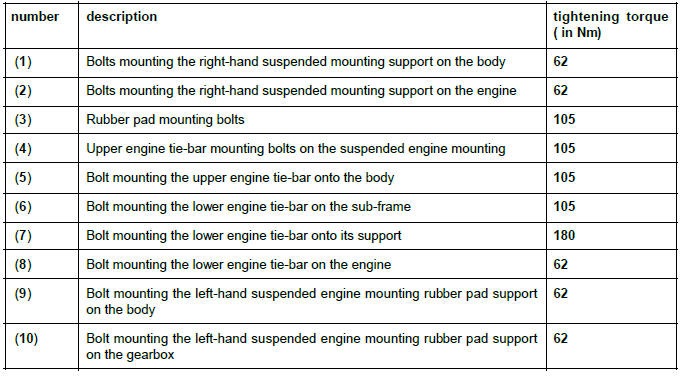

Tightening torque (in Nm)

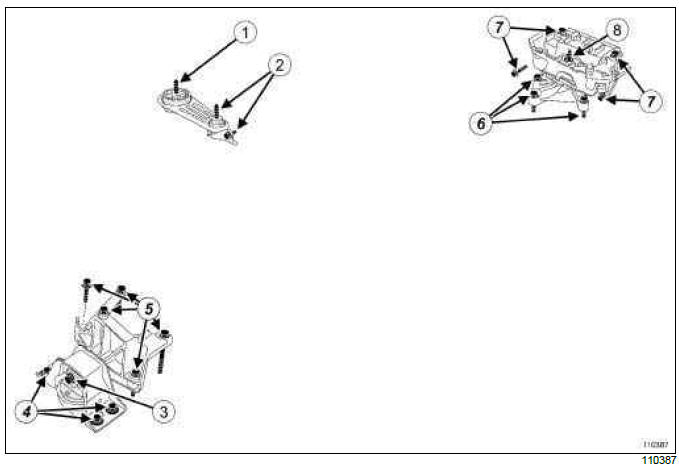

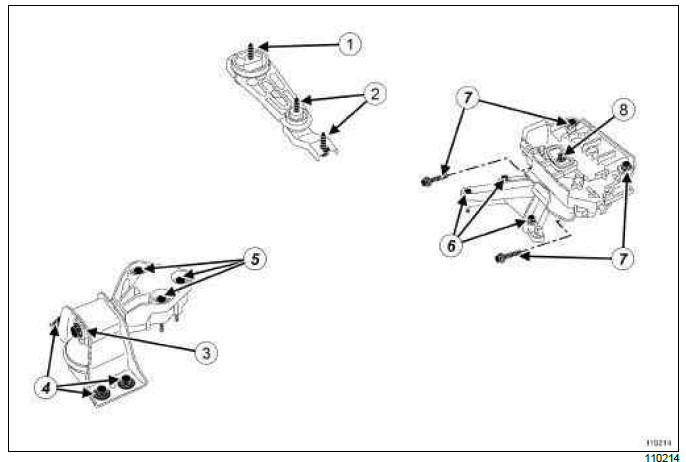

K4J, and JH3

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

K4M, and JH3

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

K4M, and DP0

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

K9K, and JR5

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

K9K, and JH3

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

K9K, and TL4

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

D4F, and JH3

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

M4R, and DP0

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

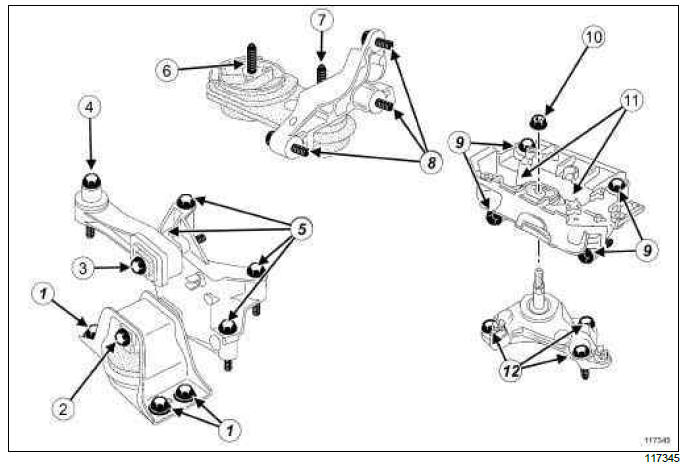

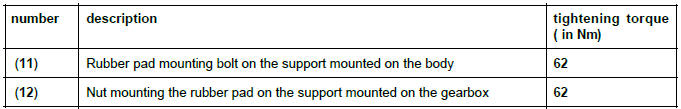

F4R

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque

M4R, and TL4

Renault Clio. Suspended engine mounting: Tightening torque

Renault Clio. Suspended engine mounting: Tightening torque
