Renault Clio: Vacuum pump: Removal - Refitting
K9K
![Renault Clio. Vacuum pump: Removal - Refitting](images/books/2116/renault_clio_vacuum_pump_removal_refitting_3333.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Remove:
- the engine covers,
- the air filter duct.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Vacuum pump: Removal - Refitting](images/books/2116/renault_clio_vacuum_pump_removal_refitting_3334.jpg)

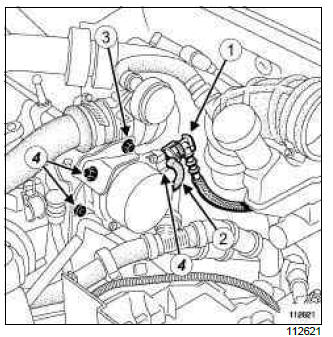

- Undo the vacuum pump retaining bracket bolt (3).
- Remove:
- the hose (1) connected to the brake servo,
- the pipe (2),
- the vacuum pump bolts (4),
- the vacuum pump.
REFITTING
I - REFITTING PREPARATIONS OPERATION
- Be sure to replace the vacuum pump seal.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit:
- the vacuum pump with the new seal,
- the vacuum pump bolts.
- Torque tighten:

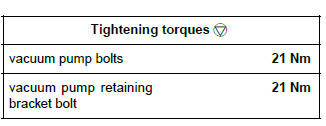

- the vacuum pump bolts (21 Nm),
- the vacuum pump retaining bracket bolt (21
Nm).
- Refit:
- the pipe,
- hose connected to the brake servo,
III - FINAL OPERATION.
- Refit:
- the air filter duct,
- the engine covers.
