Renault Clio: Rubber bush: Adjustment
Renault Clio III (2005-2013) Service Manual / Chassis / Rear Axle Components / Rubber bush: Adjustment
WARNING
Never use the rear axle as support for a lifting system.
ADJUSTMENT
- Position the vehicle on a two-post lift (see Vehicle: Towing and lifting).
- Release the parking brake.
- Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, 35A-1).

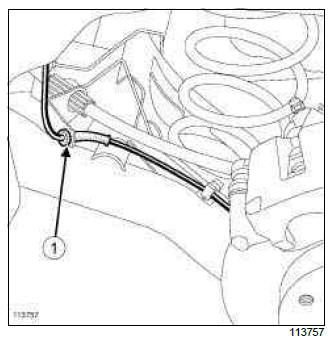

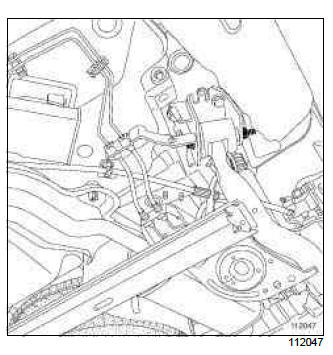

- Unclip the speed sensor harness at (1).

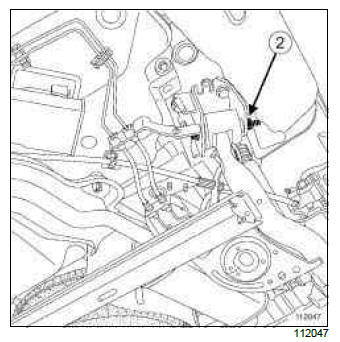

- Loosen the rubber bush nuts (2).
- Remove the springs (see 33A, Rear axle components, Rear suspension spring: Removal - Refitting, 33A-27).

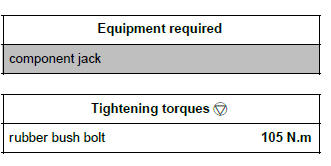

- Place the tool component jack in contact with a shim under the rear axle near the shock absorber at (3).

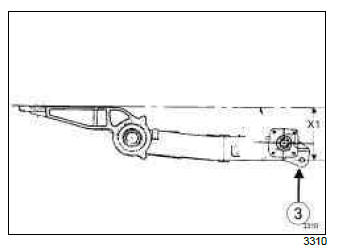

- Adjust the component jack in order to obtain a distance (X1) of 150 mm between the lower mounting of the shock absorber and the side member.
- Torque tighten the rubber bush bolt (105 N.m).
- Do the same for the other side.
- Refit the springs (see 33A, Rear axle components, Rear suspension spring: Removal - Refitting, 33A-27).
- Clip on the speed sensor harness.
- Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, 35A-1).
