Renault Clio: Sender: Removal - Refitting
K9K
![Renault Clio. Sender: Removal - Refitting](images/books/2116/renault_clio_sender_removal_refitting_2332.jpg)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02, Lifting equipment).
- Drain the fuel tank (see 19C, Tank, Fuel tank: Draining, 19C-8).
- Remove the battery covers.
- Disconnect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
- Remove the fuel tank (see 19C, Tank, Fuel tank: Removal - Refitting,
19C-1).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Sender: Removal - Refitting](images/books/2116/renault_clio_sender_removal_refitting_2333.jpg)

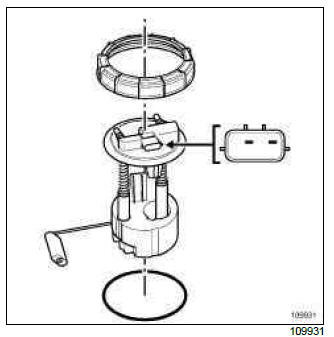

- Remove the mounting nut from the sender unit using
(Mot. 1397)
- Let the fuel drain from the sender.
- Remove the sender unit, being careful with the float.
WARNING
Refit the sender nut as soon as the sender has
been removed to prevent any deformation of the
fuel tank.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
![Renault Clio. Sender: Removal - Refitting](images/books/2116/renault_clio_sender_removal_refitting_2334.jpg)

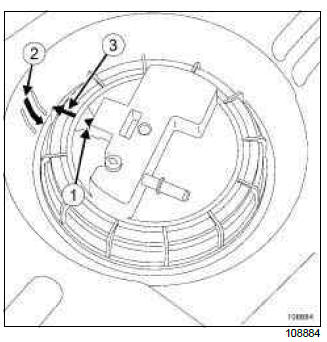

- Refit the pump - sender by positioning the mark (1)
on the sender opposite the mark (2) on the tank.
- Position the sender mounting nut.
- Tighten the sender mounting nut using the (Mot.1397) until the mark on the nut (3) lines up with the
mark (2) on the tank and the mark (1) on the sender.
II - FINAL OPERATION.
- Refit the fuel tank (see 19C, Tank, Fuel tank: Removal - Refitting,
19C-1).
- Connect the battery (see Battery: Removal - Refitting)
(MR 392, 80A, Battery).
