Renault Clio: Clutch position sensor: Removal - Refitting
Renault Clio III (2005-2013) Service Manual / Transmission / Sequential Gearbox / Clutch position sensor: Removal - Refitting
K9K, and JA5
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
II - OPERATION FOR REMOVAL OF PART CONCERNED
- Remove the engine undertray.
- Disconnect the clutch position sensor connector.
- Remove:

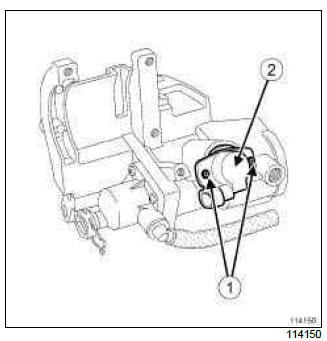

- the bolts (1) from the clutch position sensor,
- the clutch position sensor (2).
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the clutch position sensor,
- the clutch position sensor bolts.
- Connect the clutch position sensor connector.
II - FINAL OPERATION.
- Refit the engine undertray.
- Connect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
- Carry out the necessary programming (see Fault finding - Replacement of components (MR 394, 21B, Sequential gearbox).
D4F, and JA3
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (MR 392, 02A, Lifting equipment).
- Disconnect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
II - OPERATION FOR REMOVAL OF PART CONCERNED
- Remove the engine undertray.
- Disconnect the clutch position sensor connector.
- Remove:

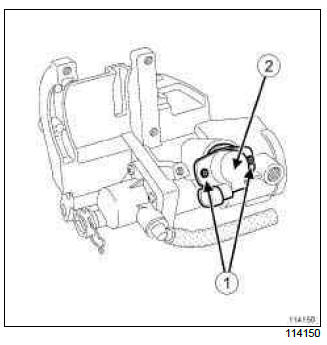

- the clutch position sensor bolt (1),
- the clutch position sensor (2).
REFITTING
I - REFITTING OPERATION FOR PART CONCERNED
- Refit:
- the clutch position sensor,
- the clutch position sensor bolts.
- Connect the clutch position sensor connector.
II - FINAL OPERATION.
- Refit the engine undertray.
- Connect the battery (see Battery: Removal - Refitting) (MR 392, 80A, Battery).
- Carry out the necessary programming (see Fault finding - Replacement of components (MR 394, 21B, Sequential gearbox).
