Renault Clio: Crankshaft accessories
pulley: Removal - Refitting
D4F, and 740 or 742 or 764

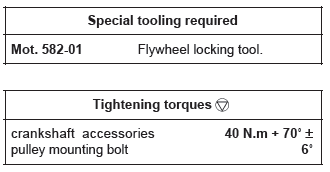

![Renault Clio. Crankshaft accessories pulley: Removal - Refitting](images/books/2116/renault_clio_pulley_removal_refitting_676.png)
REMOVAL
I - REMOVAL PREPARATION OPERATION
- Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 392, 02A, Lifting equipment).
- Remove:
- the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 392, 35A, Wheels and tyres),
- the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 393,
55A, Exterior protection),
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting, 11A-5).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
![Renault Clio. Crankshaft accessories pulley: Removal - Refitting](images/books/2116/renault_clio_pulley_removal_refitting_677.png)

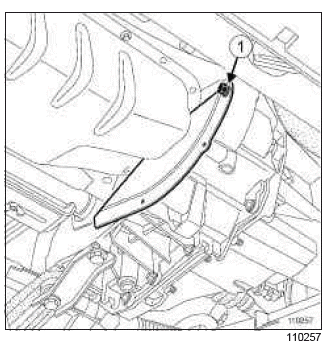

- Remove:
- the flywheel cover mounting bolt (1),
- the flywheel cover.
![Renault Clio. Crankshaft accessories pulley: Removal - Refitting](images/books/2116/renault_clio_pulley_removal_refitting_678.png)

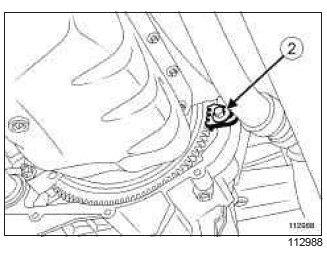

- Fit the immobilising tool (Mot. 582-01) (2).
- Remove:
- the accessories pulley mounting bolt,
- the accessories pulley.
REFITTING
I - REFITTING PREPARATION OPERATION
WARNING
You must replace the crankshaft accessories pulley
mounting bolt.
- Clean the crankshaft accessories pulley grooves
with a wire brush to ensure there are no deposits.
II - REFITTING OPERATION FOR PART
CONCERNED
- Refit the crankshaft accessories pulley using a new
bolt.
- Torque tighten the crankshaft accessories pulley
mounting bolt (40 N.m + 70
