Renault Clio: Five-door version

Renault Clio. Five-door version


Side lights/brake and direction indicator lights

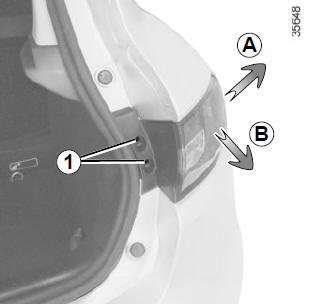

Open the boot lid and remove screws 1.

The bulbs are under pressure and can break when replaced.

Risk of injury.

Renault Clio. Five-door version

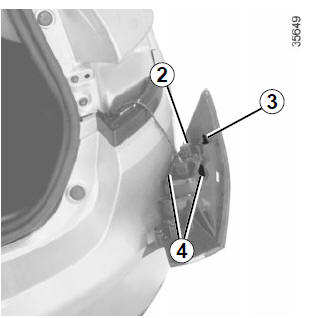

To release the light unit, start by moving the exterior edge away to a sufficient extent (movement A) to release clip 3, then pull the light unit backwards (movement B).

Remove the bulb holder by carefully releasing clips 4, lightly raise the bulb holder and then release clip 2.

Change the bulb.

Renault Clio. Five-door version


Refit the bulb holder and push the unit in fully until it locks in place.

Check that the light is properly locked in position.

Tighten screws 1.

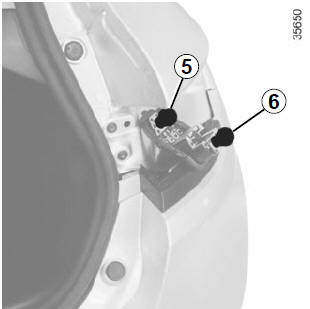

5 Side light and brake light Bulb type: P21/5W.

6 Direction indicator lights Bulb type: PY21

To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.

Estate version

Renault Clio. Estate version

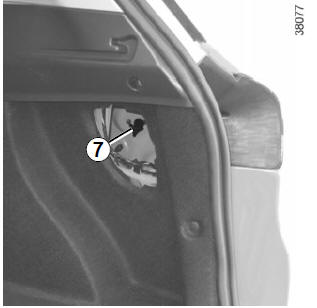

Side lights/brake and direction indicator lights Unclip the cover to access nut 7.

Unscrew nut 7.

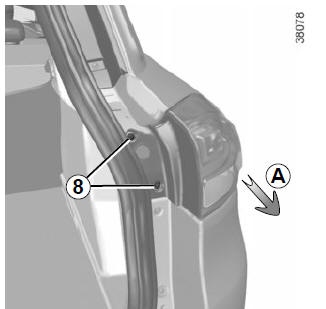

Unscrew screw 8.

Pull the light unit backwards (movement A).

Renault Clio. Estate version

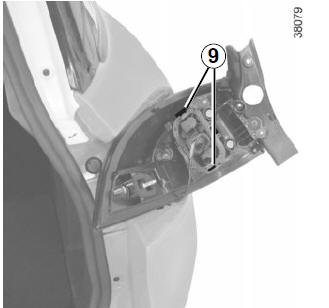

Remove the bulb holder by carefully releasing clips 9, and gently pull the bulb holder.

Change the bulb.

Refit the bulb holder and push the unit as far as it will go, until it locks into place.

Check that the light is properly locked in position.

Tighten the screw 8 and nut 7.

Clip the cover in place.

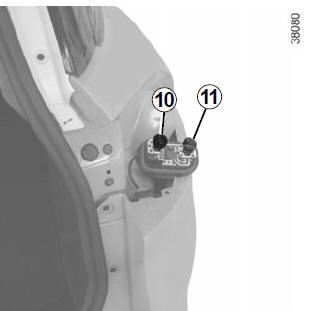

10 Side light and brake light Bulb type: P21/5W.

11 Direction indicator lights Bulb type: PY21.

Renault Clio. Estate version


Renault Clio. Estate version
